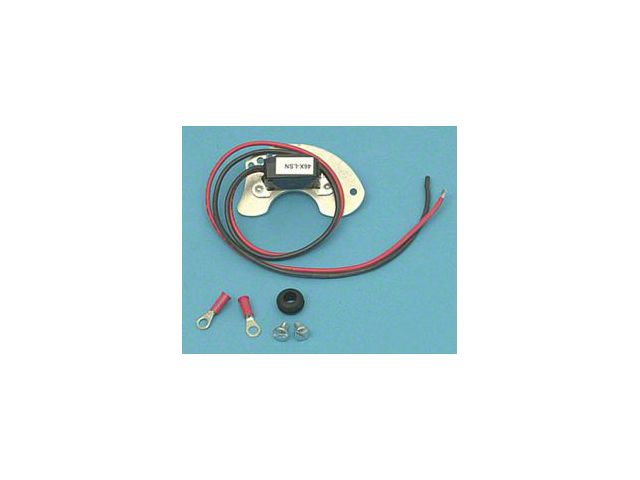

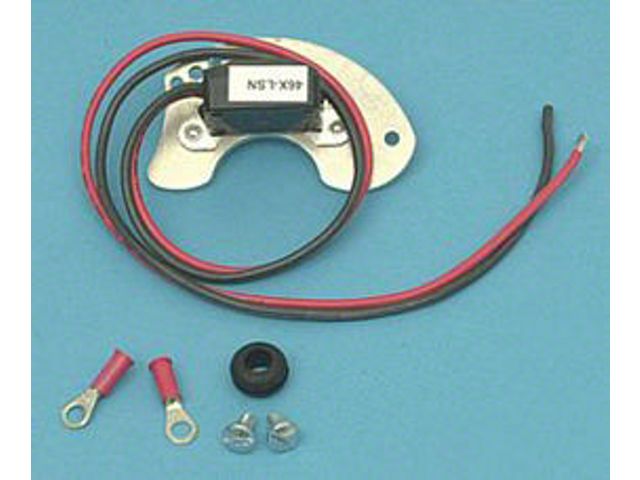

Electronic Ign Conversion-Lobe Type, V8 (1957 Chevy Bel Air; 1957 Chevy 150; 1957 Chevy 210; 1957 Chevy Nomad)Find parts that fit my vehicle
Item EK-57-134522-1
Limited Time
On Sale
-10% $152.99 Was $169.99
Coupon
Military, Medical & First Responders
$7.65 Available in EK Cash Rewards.
Confirm Eligibility
Confirm Eligibility
Saved - View your saved items
We're sorry. We couldn't save this product at this time.
or use
Shop Owners Save More!
Sign up for our dealer program
Product Information
Features, Description, Q&A
Features
- Delivers Twice The Voltage To The Spark Plugs, Increasing Horsepower, Fuel Economy, And Spark Plug Life
- 2:1 Improvement Over "Points" In Current Fall Time For Increased Coil Output
- Rotating Cobalt Magnets Trigger A Hall Effect Integrated Circuit; No Points To Burn; No Moving Parts To Wear Out
- Epoxy Molding Makes Module Impervious To Dirt, Oil, Grease And Moisture
- Stable Timing; No Need For Any Adjustments
- Pair With A Flame Thrower Canister Coil For Optimal Performance
- Legal In All 50 States And Canada (C.A.R.B. E.O. #D-57-22)
- Original Ignitor Module Ideal For Restorations, Fits Into Original Distributor To Maintain Stock Look
- No Additional Ignition Box Required For Clean Look Under Hood
- Covers Automotive, Marine, Industrial And Agriculture Applications
- Improves Reliability And Performance Of Ignition System By Replacing Mechanical Points
- Simple Bolt-In Installation Replacing Points Assembly And Provides Accurate Trigger Signal
- Improves Timing Accuracy And Prevents Points Bounce At Higher RPM
- Electronic Technology Enhances Dwell Control For Hotter Spark Output
- Self-Contained, Maintenance Free Electronic Ignition System
- Voltage: 12
- Polarity: Negative Ground
- Trigger Type: Lobe Sensor; Hall Effect
- Distributor Fitment: Delco
- Coil Compatibility: 1.5 Ohms
- Dwell: Fixed
- Start Mode: None
- Timing: Fixed
- Rev Limiter: None
- Multi-Spark: None
- SAE Wire Gauge: 20 Gauge
- Terminal Quantity: 2
- Terminal Type: Ring Terminal
- Grade Type: Performance
- Fits 1957 Chevy Bel Air; 1957 Chevy 150; 1957 Chevy 210; 1957 Chevy Nomad
Description
Electronic Ignition Conversion for Enhanced Performance and Reliability. This Electronic Ignition Conversion Module with Lobe Type trigger for V8 engines effectively replaces traditional mechanical points. It increases ignition voltage to the spark plugs, which improves horsepower, fuel economy, and spark plug life. This module is an excellent choice for restoring or upgrading vintage engines with a Delco distributor.
Durable and Precision-Engineered Design. Featuring epoxy molding, the module is sealed against dirt, oil, grease, and moisture. It uses a Hall Effect sensor triggered by rotating cobalt magnets—eliminating moving parts and points wear. The fixed timing setup ensures stable, maintenance-free performance while maintaining the original distributor’s classic appearance.
Easy Bolt-In Installation. This unit installs by bolting directly in place of the original points assembly, providing an accurate trigger signal that improves timing precision and prevents points bounce at higher RPM. No additional ignition box is required, ensuring a clean and stock-looking engine bay.
Reliable Two-Year Limited Warranty. The module comes with a two-year limited warranty against defects in materials and workmanship, giving users confidence in product quality and durability.
Application. Specifically fit for 1957 Chevy Bel Air, 1957 Chevy 150, 1957 Chevy 210, and 1957 Chevy Nomad models, this ignition conversion kit is tailored to the original Delco distributor and negative ground electrical systems common to these vehicles.
