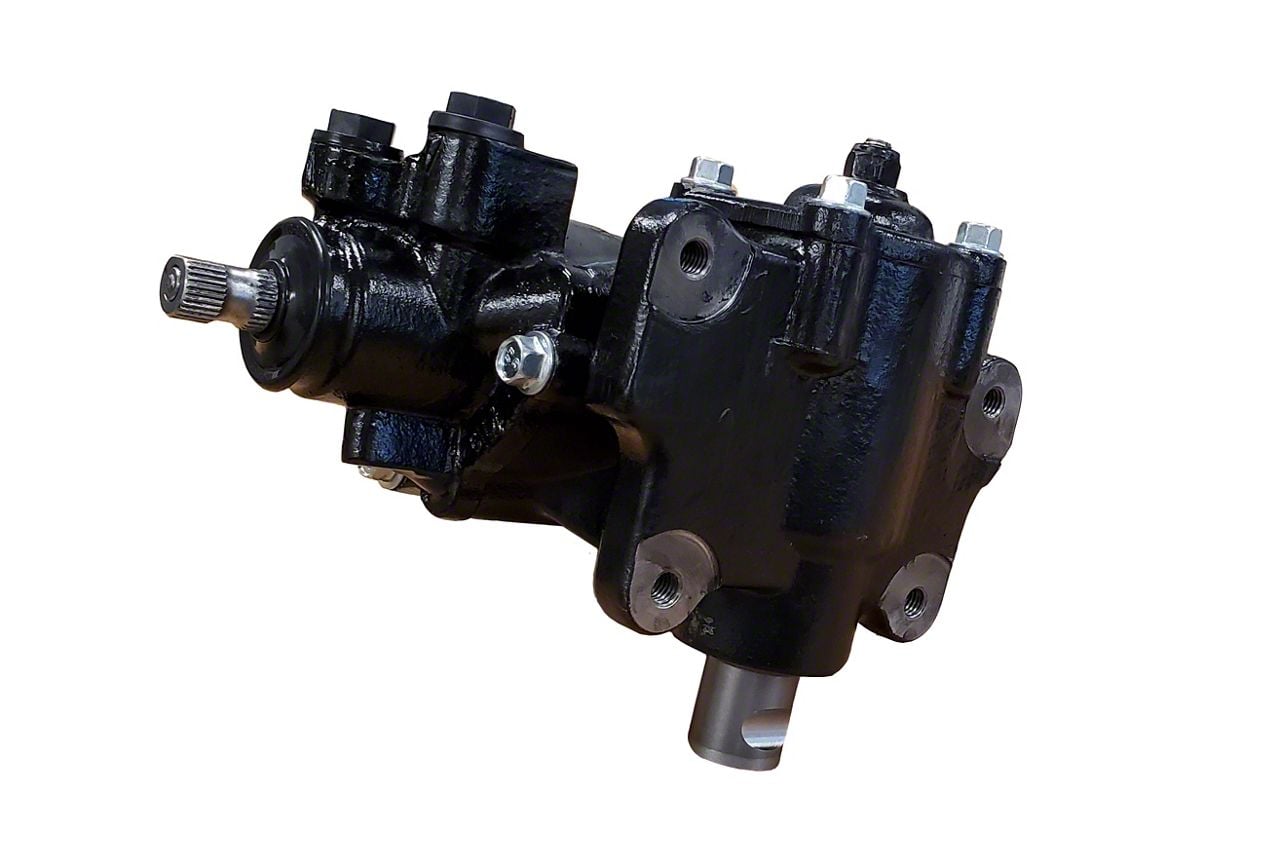

Borgeson Street and Performance Power Steering Box; 12.7:1 Ratio (68-87 K10; 69-91 4WD Blazer, Jimmy)

Item EK-61-911569
Product Image
1 Reviews
Our Price

$504.00

Military, Medical & First Responders $25.20 Available in Eckler's Cash Rewards.
Confirm Eligibility

CONFIRM THIS FITS YOUR VEHICLE!

Select a different vehicle Help?
Update or Change Vehicle
Add to Cart
Save for later
    Create a list
    Add to New List

    Saved - View your saved items

    We're sorry. We couldn't save this product at this time.

    or use

    Shop Owners Save More! Sign up for our dealer program
    Join For FREE

      Product Information

      Features, Description, Reviews, Q&A

      Features

        _x000D_
      • Street and Performance Quick Ratio Power Steering Box with a 12.7:1 Steering Ratio
        • _x000D_
      • Replaces Saginaw/Delphi 800 Series Boxes
        • _x000D_
      • Designed for Chevy K10 Trucks from 1968 to 1986
        • _x000D_
      • Also fits Chevy/GMC V-Series from 1987 to 1991
        • _x000D_
      • Bolt-on direct mount to stock location
        • _x000D_
      • Compatible with original power steering pitman arms
        • _x000D_
      • Manual steering conversions require power steering pitman arm
        • _x000D_
      • Includes adapters for O-ring or flare-style hose connections
        • _x000D_
      • Input shaft: 3/4"-30 spline
        • _x000D_
      • Pitman shaft: 1-1/4" GM with 9 splines and notch
        • _x000D_
      • Pressure port: M18 x 1.5 O-ring or 11/16"-18 flare (using included inserts)
        • _x000D_
      • Return port: M16 x 1.5 O-ring or 5/8"-18 flare (using included inserts)
        • _x000D_
      • Maximum operating pressure: 1450 PSI, optimal range 1100-1250 PSI
        • _x000D_
      • Recommended flow rate: 2.5-3.0 GPM
        • _x000D_
      • All units are assembled and tested in the USA
        • _x000D_
      • Comes with a three-year warranty
        • _x000D_
      • All pre-1977 trucks require a new rag joint connector #990012
        • _x000D_
      • Fits 1968-1987 K10; 1969-1991 4WD Blazer and Jimmy
        • _x000D_

      Description

      Borgeson Street & Performance Quick Ratio Chevy K10 Power Steering Box. Borgeson Universal now offers an all new modern quick ratio power steering box to replace the Saginaw/Delphi 800 series in 68-86 Chevy K10 trucks. This all new power steering box has a quick 12.7:1 ratio with firm modern steering feel. The Borgeson Street & Performance power steering box will bolt directly to the stock location and fit to the original power steering pitman arms. Trucks switching from manual steering will require a power steering pitman arm. Steering box includes adapters to be able to use either O-ring or flare style hose connections. This new Borgeson steering box uses a 3/4"-30 spline input shaft and all pre-1977 trucks will require a new rag joint connector #990012.

      Borgeson 800133
