Aeromotive FourX Return-Type Fuel Control System for 3 to 4-Pump Systems (Universal; Some Adaptation May Be Required)

Item EK-57-912558

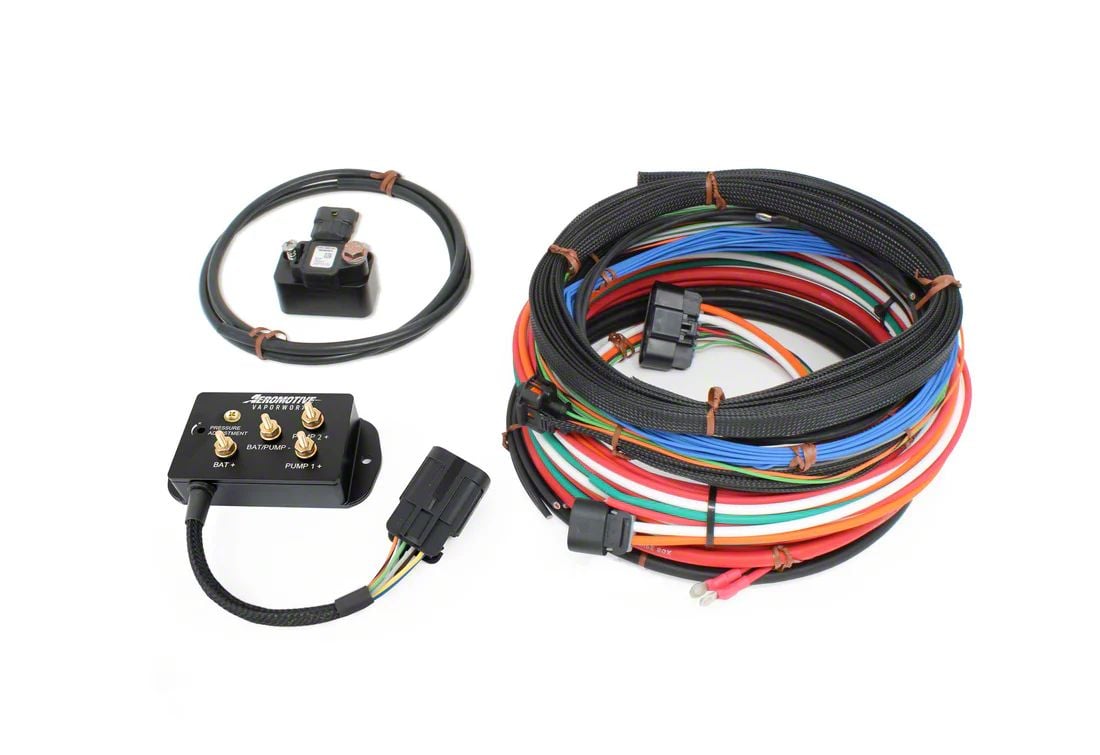

Product Image
Eckler's no longer carries the Aeromotive FourX Return-Type Fuel Control System for 3 to 4-Pump Systems (Universal; Some Adaptation May Be Required). Please check out Tri-Five Engine for an updated selection.
Shop Owners Save More! Sign up for our dealer program
Join For FREE
Loading Indicator

    Product Information

    Features, Description, Q&A

    Features

      _x000D_
    • Works With All Brushed Type Fuel Pumps
      • _x000D_
    • Typical Power Reduction To The Pump(s) Of 45-75% During Idle And Cruise Resulting In Reduced Heat Generation
      • _x000D_
    • Includes A Stand-Alone 2.5bar LSA/LS9 Type MAP Sensor For Pump Speed Control And Feedback
      • _x000D_
    • All Pumps Are Under PWM Control
      • _x000D_
    • Plumb The Fuel System Using Traditional Regulators, Filters, And Return Lines
      • _x000D_
    • Developed For In-Cell Use Where The Primary Output Feeds A Lift And Pressure Pump, And The Secondary Output Controls The Third And Fourth Pumps
      • _x000D_
    • Compatible With Any Two, Three, Or Four Pump System
      • _x000D_
    • Designed For Forced Induction Systems Only
      • _x000D_
    • High-Horsepower Pumping Systems Can Create Excessive Heat That Can Lead To Vapor Lock In The Fuel System
      • _x000D_
    • PWM Provides Power Throttling By Turning The Pump On And Off Thousands Of Times Per Second
      • _x000D_
    • Primary And Secondary PWM Controller Outputs Manage Pumps In A Leader-Follower Arrangement
      • _x000D_
    • Maintains Smooth Ramp-Up Without The Need For Relays Or Hobb’s Switches
      • _x000D_
    • Minimum 110A Continuous Power Rating In A Compact Controller Package
      • _x000D_
    • Over-Temperature Shutdown With Automatic Reset For Continuous Operation Without Damage
      • _x000D_
    • Short Circuit Output Protection Ensures Safe Operation
      • _x000D_
    • Uses OEM Delphi/Aptiv Connections For Terminals, Seals, And Connector Bodies
      • _x000D_
    • All Cross-Linked Polyethylene Wiring
      • _x000D_
    • UL94 Rated Components Throughout
      • _x000D_
    • Integrates Into OE ECM To Maintain All Safety Systems Functionality
      • _x000D_
    • Operates From 10-18v; Voltage Below 10v Causes Shutdown To Prevent Lean AFR Condition
      • _x000D_
    • Easy To Set Idle/Cruise Primary Pump Speed Adjustments
      • _x000D_
    • #3 And #4 Pumps Ramp In Automatically; No Adjustments Needed
      • _x000D_
    • Significantly Reduces Average Fuel Pump Power Requirement, Lowering Fuel Temperatures And Extending Pump Life
      • _x000D_
    • Compatible With Standard Return-Type Plumbing Systems
      • _x000D_
    • Recommended Fuel Pressure Set At Approximately 43psi At Idle For Supercharged Applications
      • _x000D_
    • AN8 Fuel Lines Minimum For Up To 1200hp; AN10 Recommended Above 1200hp
      • _x000D_
    • Fits Universal; Some Adaptation May Be Required For Naturally Aspirated Applications - Contact Aeromotive For Guidance
      • _x000D_

    Description

    Advanced Fuel Control. The Aeromotive FourX Return-Type Fuel Control System for 3 to 4-Pump Systems is a comprehensive pulse width modulation controller kit designed to efficiently manage up to four high-power brushed fuel pumps. It modulates fuel pump speed using a stand-alone 2.5bar LSA/LS9 type MAP sensor to optimize fuel delivery while significantly reducing pump heat during low-demand conditions, which helps prevent vapor lock in high-performance forced induction engines.

    _x000D__x000D_

    Durable Construction And Materials. This system features a compact controller with a minimum continuous power rating of 110 amps, built with UL94 rated components and all cross-linked polyethylene wiring. It includes OEM Delphi/Aptiv connectors for reliable electrical connections, ensuring durability under demanding automotive conditions.

    _x000D__x000D_

    Installation. Installation is straightforward with no drilling required, integrating easily into traditional return-style fuel plumbing systems. The controller replaces conventional relay and Hobb’s switch arrangements, simplifying high-flow fuel system setups.

    _x000D__x000D_

    Warranty. This product comes with a one-year limited warranty against defects in material and workmanship.

    _x000D__x000D_

    Application. Engineered specifically for forced induction fuel systems utilizing 3 to 4 brushed fuel pumps, the system fits universal applications with some adaptation. For naturally aspirated applications, please contact Aeromotive for guidance on suitability.
