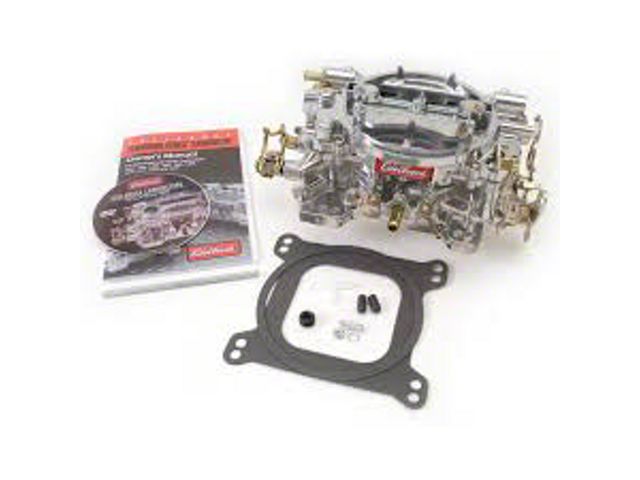

800 CFM AVS2 Edelbrock Carburetor Thunder Series

Item EK-61-852228-1
10 Reviews of Edelbrock
Our Price

$464.95

Military, Medical & First Responders $23.25 Available in Eckler's Cash Rewards.
Confirm Eligibility

Add to Cart
Save for later
    Create a list
    Add to New List

    Saved - View your saved items

    We're sorry. We couldn't save this product at this time.

    or use

    Shop Owners Save More! Sign up for our dealer program
    Join For FREE

      Product Information

      Features, Description, Q&A

      Features

        _x000D_
      • Application Universal
        • _x000D_
      • Series Avs2
        • _x000D_
      • Condition New
        • _x000D_
      • Metering Rod Size .065 X .052 In
        • _x000D_
      • Mounting Hole Quantity 8
        • _x000D_
      • Grade Type Performance
        • _x000D_
      • Gasket Or Seal Included Yes
        • _x000D_
      • Mounting Hole Diameter 0.355 In
        • _x000D_
      • Barrel Quantity 4 Barrel
        • _x000D_
      • Flange Type Square
        • _x000D_
      • Street Legal No
        • _x000D_
      • Secondary Jet Diameter 0.104
        • _x000D_
      • Secondary Venturi Diameter 1.630 In
        • _x000D_
      • Body Material Aluminum
        • _x000D_
      • Main Venturi Diameter 1.525
        • _x000D_
      • Body Height 3.25
        • _x000D_
      • Spacer Included No
        • _x000D_
      • Metering Rod Length 65 In
        • _x000D_
      • Bore Diameter Primary Bore 1.75; Secondary Bore 1.75
        • _x000D_
      • Spring Force 5" Hg (Orange)
        • _x000D_
      • Availability Note Available To Order
        • _x000D_
      • Installation Notes Manual Choke Avs2 Carbs Cannot Be Converted To Electric Choke. Avs2 Carbs Will Work With Ford Automatic Overdrive Trans (Aod) When Used With Lokar Bracket Srk-4000. Not Calibrated For Or Compatible With Alcohol, Race Or E85 Pump Fuel. Use Of Alcohol Or E85 Will Damage Carburetor And Void Warranty. New Fuel Filter Is Required Between Fuel Pump And Carburetor Or Warranty Is Voided.
        • _x000D_
      • Choke Type Manual
        • _x000D_
      • Finish Satin
        • _x000D_
      • Marine Approved No
        • _x000D_
      • Material Aluminum
        • _x000D_
      • Cfm Rating 800 Cfm
        • _x000D_
      • Primary Jet Diameter 0.104
        • _x000D_
      • Fits
        • _x000D_

      Description

      High-Performance Carburetor. The Edelbrock 800 CFM AVS2 Carburetor Thunder Series delivers superior fuel atomization for high-horsepower small- and big-block engines. Designed with advanced annular flow booster technology, it optimizes throttle response and power across all RPM ranges, making it ideal for street and performance applications.

      _x000D_

      Construction and Appearance. Crafted from durable aluminum, the carburetor features a satin finish that provides a sleek yet functional look. Its robust construction ensures longevity and resistance to harsh engine conditions while maintaining an appealing, professional appearance suitable for performance vehicles.

      _x000D_

      Installation. Installation is straightforward, requiring no drilling for mounting. The manual choke design is ready to install with compatible components but cannot be converted to electric choke, so correct selection is crucial prior to installation. Note that this carburetor is not calibrated for or compatible with alcohol, race, or E85 pump fuels; use of these will damage the carburetor and void the warranty. A new fuel filter is required between the fuel pump and carburetor to maintain warranty coverage. Additionally, Avs2 carbs will work with Ford automatic overdrive transmissions (AOD) when used with the appropriate Lokar bracket (SRK-4000).

      _x000D_

      Warranty. This carburetor includes a 12-month warranty covering defects in materials and workmanship.

      _x000D_

      Application. Designed as a universal fit carburetor without specific vehicle restrictions; installation notes provide compatibility considerations concerning fuel types and transmission types, ensuring proper match for respective setups.
