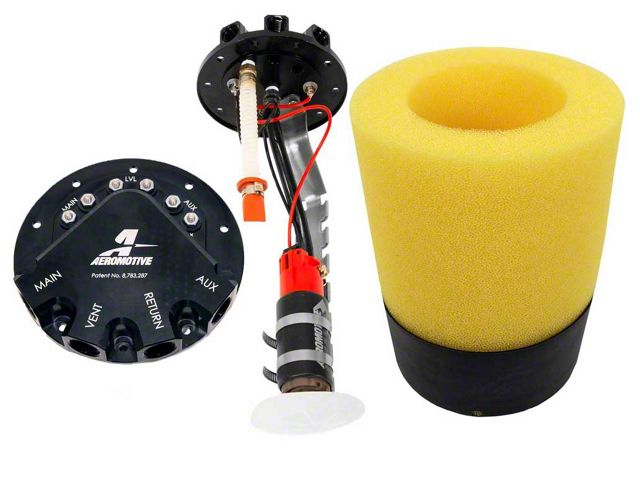

Aeromotive 1994-2004 Chevy-GMC Truck Aeromotive Phantom Single 340LPH Fuel Pump, Direct Drop-In

Item EK-61-856781-1
Product Image
40 Reviews of Aeromotive
Our Price

$670.37

Military, Medical & First Responders $33.52 Available in EK Cash Rewards.
Confirm Eligibility

Add to Cart
Save for later
    Create a list
    Add to New List

    Saved - View your saved items

    We're sorry. We couldn't save this product at this time.

    or use

    Shop Owners Save More! Sign up for our dealer program
    Join For FREE
    Loading Indicator

      Product Information

      Features, Description, Q&A

      Features

      • This system is designed to work in trucks equipped with OEM plastic fuel tanks only.
      • Some 1999 models may have steel tanks, which are not compatible with this Phantom Series.
      • 1999-2004 models with plastic tanks use a smaller factory opening than 2005-2017 models, limiting pump configuration options.
      • Compatible pump configurations include a single 340, a dual 340, and a single 450 pump only.
      • Other larger pump combinations will not fit through the factory tank opening.
      • Silverado and Sierra tanks have a depth of approximately 14.00 inches, while other models have shallower tanks around 8.25 inches.
      • Phantom Systems accommodate tanks up to 17.00 inches deep.
      • Not configured for use with OEM pulse-modulated-to-pressure pump control.
      • Requires installation of a return style fuel system including high-flow AN style fuel lines, fuel filter, and EFI bypass regulator with a return line.
      • Not legal for sale or use on emission-controlled vehicles except when used as a direct replacement matching OEM specifications.
      • Fits 1999-2004 GM trucks equipped with OEM plastic fuel tanks only. Does not fit 1999 models with steel tanks or models post-2004 due to different tank openings.

      Description

      Direct Drop-In Fuel Pump System. The Aeromotive Phantom Series fuel pump system is engineered specifically for 1999-2004 GM trucks with OEM plastic fuel tanks. It is designed to support high-performance fuel system upgrades by replacing factory pump components with a system that delivers improved flow and reliability while accommodating the specific tank dimensions and openings of these models.

      Construction and Appearance. This pump system is constructed using durable, precision-engineered components that provide high flow rates and long service life. It is optimized to fit within the OEM tank openings of the specified trucks and is designed for compatibility with return-style fuel systems required for proper operation.

      Installation. Installation requires automotive skills and involves converting to a return-style fuel system. The setup mandates the use of high-flow AN style fuel lines, a fuel filter, and an EFI bypass regulator with a return line. It is not compatible with OEM pulse-modulated-to-pressure pump control systems.

      Warranty. This product includes a one-year limited warranty covering defects in material and workmanship.

      Application. This pump system is intended exclusively for 1999-2004 GM trucks equipped with OEM plastic fuel tanks. It is not compatible with steel tanks found on some 1999 models or with models produced after 2004 due to changes in tank openings and configurations.

      Aeromotive 18312
