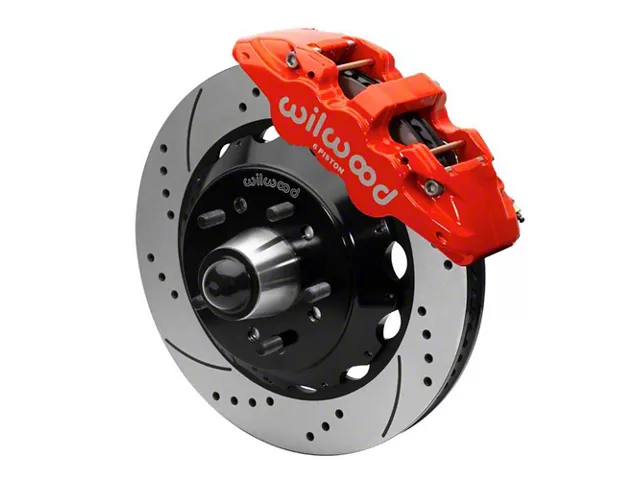

1988-1998 Chevy-GMC C1500 Wilwood AERO6 Front Brake Kit, 5 Lug-6 Piston Red Calipers, 14.25 Drilled And Slotted Rotors-With ABS

Item EK-61-889532-1
3 Reviews of Wilwood
Our Price

$2,689.83

Military, Medical & First Responders $134.49 Available in Eckler's Cash Rewards.
Confirm Eligibility

Add to Cart
Save for later
    Create a list
    Add to New List

    Saved - View your saved items

    We're sorry. We couldn't save this product at this time.

    or use

    Shop Owners Save More! Sign up for our dealer program
    Join For FREE

      Product Information

      Features, Description, Q&A

      Features

        _x000D_
      • OE Hub Offset: +0.04
        • _x000D_
      • Spindle Type: Drop Spindle
        • _x000D_
      • Mount Type: Radial
        • _x000D_
      • Caliper Type: 6 Piston Red Powder Coat
        • _x000D_
      • Rotor Diameter: 14 Inches
        • _x000D_
      • Minimum Wheel Diameter Required: 18 Inches
        • _x000D_
      • Directional Staggered Vane Rotors
        • _x000D_
      • Hubs Bolt Pattern: 5 x 4.75 Inch And 5 x 5.00 Inch Bolt Circle
        • _x000D_
      • Brake Pad Area: 11.1 Square Inches
        • _x000D_
      • Brake Pad Volume: 5.2 Cubic Inches
        • _x000D_
      • Rotor Style: Drilled And Slotted With Black Electro Coat Finish
        • _x000D_
      • Rotor Material: Spec-37 Iron
        • _x000D_
      • Hat Type: Big Brake Flared Bell Aluminum With Black Electro Coat Finish
        • _x000D_
      • Hub Material: Aluminum
        • _x000D_
      • Hub Finish: Bare
        • _x000D_
      • Fits 1988 Thru 1998 Chevrolet And GMC C1500 And C2500 Trucks Equipped With Wilwood One Piece Iron Drop Pro Spindles
        • _x000D_

      Description

      High-Performance Brake Kit. The Wilwood 1988-1998 Chevy-GMC C1500 Wilwood AERO6 Front Brake Kit, featuring 5 lug 6 piston red calipers and 14.25-inch drilled and slotted rotors with ABS, is engineered to deliver enhanced stopping power and brake durability for heavy-duty and off-road applications. This kit provides robust braking performance for vehicles that demand superior heat dissipation and consistent operation, making it ideal for towing, off-road driving, and vehicles with upgraded wheel and tire packages.

      _x000D__x000D_

      Construction and Appearance. The kit includes AERO6 six-piston radial mount calipers finished in red powder coat for corrosion resistance and a striking appearance. The large 14-inch rotors incorporate directional staggered vanes and are drilled and slotted with a black electro-coat Spec-37 iron surface to optimize cooling and wear resistance. Precision-machined aluminum hubs and big brake flared bell aluminum hats, both finished with a black electro-coat, combine lightweight strength with lasting durability.

      _x000D__x000D_

      Installation. This brake kit must be installed using Wilwood's one-piece iron Pro drop spindles, as it is not compatible with original equipment spindles. The assembly is designed for bolt-on installation without the need for drilling, providing a straightforward upgrade for compatible vehicles.

      _x000D__x000D_

      Application. Specifically designed to fit 1988 through 1998 Chevrolet and GMC C1500 and C2500 trucks equipped with Wilwood one-piece iron drop pro spindles. It is not compatible with original equipment spindles and intended only for this range and series of trucks.
