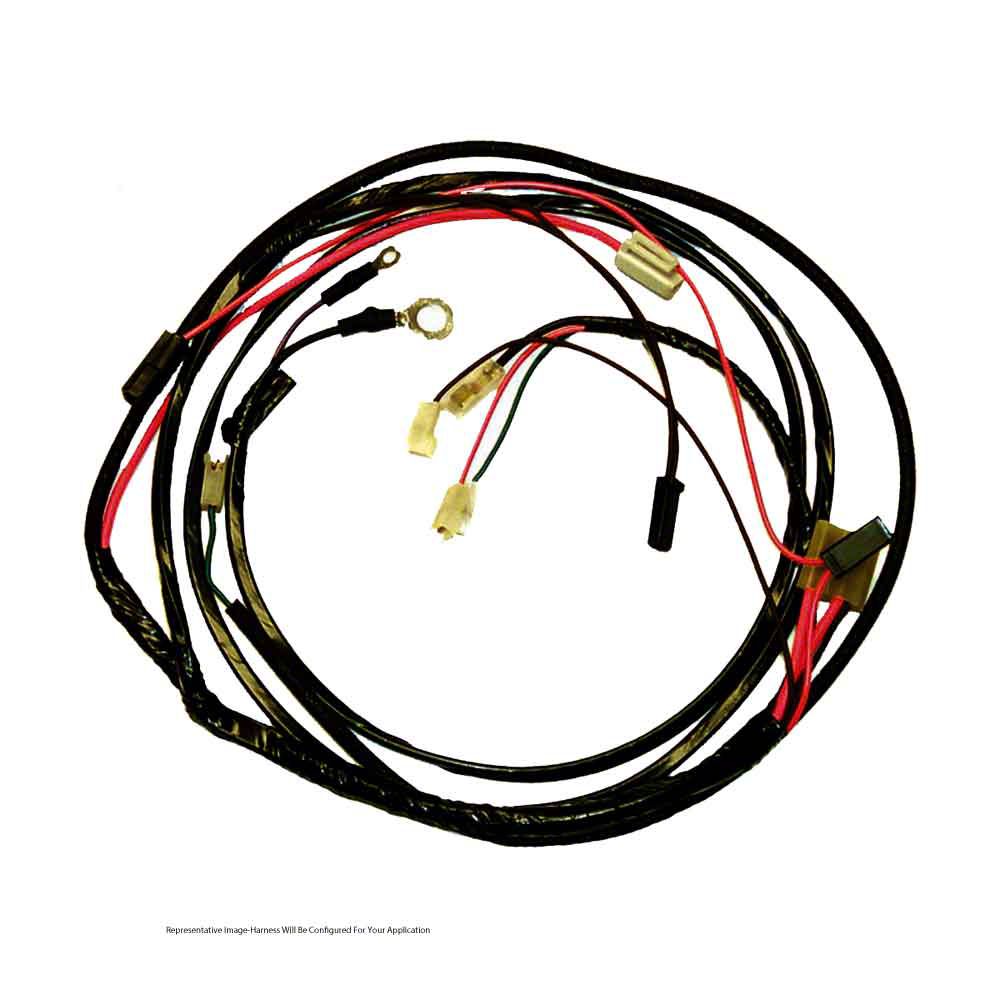

Engine Harness, 454ci-Except HD (1977 Blazer; 1977 C10; 1977 K10)

Item EK-61-395451-1
4 Reviews of similar
Our Price

$459.99

Military, Medical & First Responders $23.00 Available in EK Cash Rewards.
Confirm Eligibility

Add to Cart
Save for later
    Create a list
    Add to New List

    Saved - View your saved items

    We're sorry. We couldn't save this product at this time.

    or use

    Shop Owners Save More! Sign up for our dealer program
    Join For FREE
    Loading Indicator

      Product Information

      Features, Description, Q&A

      Features

      • Factory Fit Engine Harnesses Are Manufactured According To The Original General Motors Specifications
      • Each Part Number Is Fully Assembled, Taped And Ready To Install Upon Arrival
      • This Harness Will Plug Into The Firewall In The Factory Location, And Will Follow Original Routing In The Engine Compartment
      • A Combination Of The Engine And Front Light Harness Accomplish Most Functions Under The Hood Of An Early GM Vehicle
      • Engine Harness Design Varied Significantly From Year To Year, But Most Will Contain Wiring For Ignition System, Starter, Heater Blower, And Temperature/Oil Pressure Sender Wires If Applicable
      • Some Vehicles Used A Capillary Tube To Provide An Oil Pressure Reading, So These Will Not Be Included In A Wiring Harness
      • On Vehicles With Ignition Points, The Circuit Feeding The Ignition Coil Was Designed With Some Resistance To Extend The Life Of The Ignition Point Set
      • Modern Electronic Ignition Systems Or High Energy Ignition (HEI) Systems Do Not Require Resistance In The Circuit; It Is Recommended That A Harness Modified For HEI Be Ordered If Ignition System Has Been Upgraded
      • Please Consult Your Factory Service Manual To Determine If The Engine Harness For Your Vehicle Will Contain The Circuits Required For Your Project, Or Contact The Sales Team To Confirm Part Numbers
      • Fits 1977 Blazer, 1977 C10, and 1977 K10 Chevrolet trucks excluding heavy-duty chassis models, specifically tailored for the V8 454 c.i. engine with electric choke compatibility

      Description

      Original GM Specification. The 77TRK Enghrns-454-Except HD is a factory fit engine harness manufactured to the exact specifications of original General Motors wiring. It serves as a critical component wiring the ignition system, starter, heater blower, and sender wires, ensuring proper electrical function under the hood of 1977 Chevrolet trucks including Blazer, C10, and K10 models.

      Durable Assembly. This harness is fully assembled and taped, following the original routing and firewall plug location to simplify installation. It accommodates specific wiring needs for electric choke with a two-place oil pressure switch connection, and it is designed to work with either factory ignition points or modern High Energy Ignition systems when upgraded with the correct variant.

      Installation. Installation is straightforward with the harness crafted to plug directly into the factory firewall location, requiring no drilling or modification to chassis mounting points.

      Application. Fits 1977 Blazer, 1977 C10, and 1977 K10 Chevrolet trucks excluding heavy-duty chassis models, specifically tailored for the V8 454 c.i. engine with electric choke compatibility.
