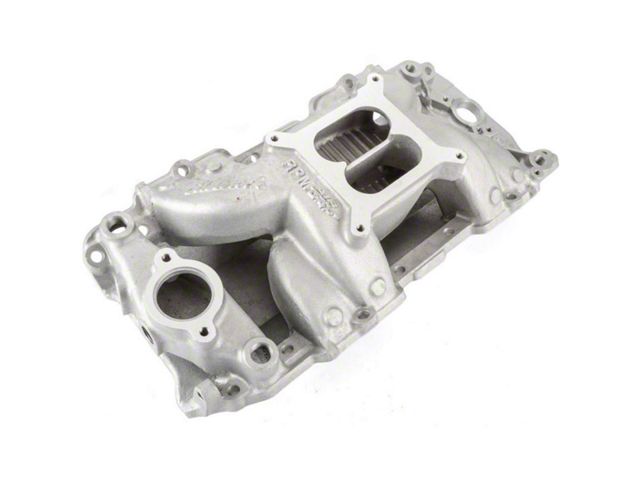

1968-89 Chevy-GMC C/K Truck Edelbrock 7562 Rectangular Port RPM Air-Gap Manifold-Big Block

Item EK-61-210152-1
76 Reviews of Edelbrock
Our Price

$492.95

Military, Medical & First Responders $24.65 Available in EK Cash Rewards.
Confirm Eligibility

Add to Cart
Save for later
    Create a list
    Add to New List

    Saved - View your saved items

    We're sorry. We couldn't save this product at this time.

    Shop Owners Save More! Sign up for our dealer program
    Join For FREE
    Loading Indicator

      Product Information

      Features, Description, Q&A

      Features

      • Designed For Street High-Performance 396-502 C.I.D. Chevrolet V8 Engines With Rectangular-Port Heads
      • Incorporates Race-Winning Air-Gap Technology To Keep Air/Fuel Mixture Cooler For Denser Charge And Increased Power
      • Dual-Plane High-Rise Design With 180-Degree Firing Order To Maximize Top-End Horsepower While Maintaining Good Throttle Response
      • Larger Plenum And Runners Optimize Performance For High-Lift Cams And Free-Flowing Exhaust Systems
      • Suitable For Engines Operating Up To 6500 RPM
      • Includes Rear Water Outlets, Dual Distributor Clamp Positions, And Nitrous Bosses
      • Compatible With Late Model Alternator And A/C Brackets
      • Intended For Use With Square-Bore Carburetors Only
      • No Provision For Exhaust Heated Chokes Or Exhaust Crossover
      • Natural Aluminum Finish For Classic Appearance
      • Dual Plane Type Intake Manifold
      • Manifold Height: 4.45 Inches (A), 6.0 Inches (B)
      • Carburetor Pad Height: 5.22 Inches
      • Port Exit Dimensions: 1.56 Inches By 2.24 Inches
      • Use RTV Sealant For End Seals, No End Seal Gaskets
      • Hardened Washers Required With Intake Bolts To Prevent Galling
      • Fits Chevrolet 396-502 Big-Block Mark IV Engines. Will Not Fit Under Stock Hood Of Corvette (1964-67), Chevelle (1964-67), Or Camaro (1967-81)

      Description

      Performance Intake Manifold. The Rectangular Port RPM Air-Gap Manifold-Big Block delivers enhanced airflow and cooler air/fuel charge for improved combustion efficiency and horsepower. It is engineered to maximize power output on large displacement Chevrolet big-block engines equipped with high-performance rectangular port cylinder heads. This manifold is ideal for street and competition engines running at high RPM levels up to 6500.

      Construction and Appearance. Crafted from high-quality aluminum, this intake manifold features a naturally finished satin surface for a classic look. Each unit is precisely cast and machined to uphold rigorous quality standards, ensuring compatibility and durability in demanding automotive environments.

      Installation. Installation is straightforward with no need for drilling, provided proper gasket and sealant usage guidelines are followed. Users should apply RTV silicone sealant to seal end areas as standard end seal gaskets are not recommended.

      Warranty. This intake manifold is backed by a 12-month warranty covering manufacturing defects.

      Application. Specifically designed to fit the Chevrolet Big-Block Mark IV engines sized from 396 to 502 cubic inches. Note that it does not fit under the stock hood of Corvette models from 1964-67, Chevelle models from 1964-67, or Camaro models from 1967-81 due to height clearance limitations.
