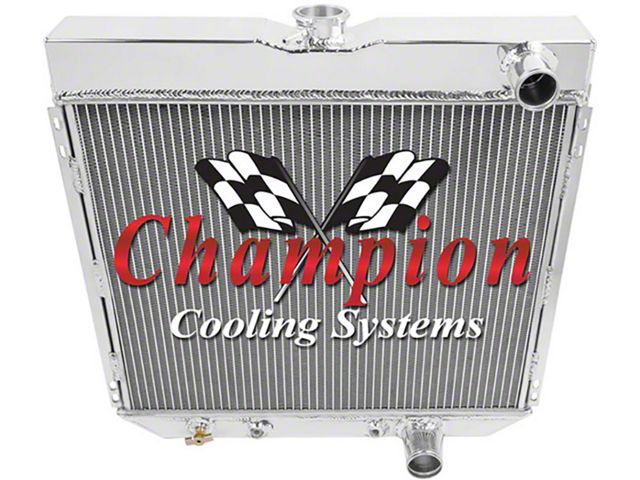

1964-1965 Mustang Champion 2-Row Aluminum Radiator, 260/289 V8

0% of 100
0  Reviews Add Your Review
$244.99 Each
Comet, 1964 thru 1966 View More
Product Details
All-Aluminum Champion 2-Row Core Radiator With Fitting... View More
Shipping Notes
This item has additional shipping charges due to heavy weight or oversize dimensions.
Availability: Ships Direct From Manufacturer
  • All-Aluminum Champion 2-Row Core Radiator With Fittings
  • Cools Up To Approximately 350 Horsepower
  • High-Flow Design With 2 Rows Of 3/4" Tubing
  • 100% TIG Welded Seams With Brazed Cores (No Epoxy)
  • Thick Billet Fill Neck With TIG Welded Base (Not Pressed In)
  • 50%-75% Lighter Than Typical Copper/Brass Radiator
  • Includes Radiator Cap & Transmission Cooler
  • ISO Certified Manufacturing For Consistent Premium Quality
  • Limited Lifetime Manufacturer Warranty


Your classic Ford Mustang can get hot... really hot! Driving and idling in traffic on 90+ degree summer days can push your stock cooling system to its limits... and beyond. Factory brass radiators are barely satisfactory at transferring heat, which is why they overheat when you least expect it. Why take chances with your valuable engine? Step up to Champion's all-aluminum, high efficiency radiator. Aluminum alloy is a far superior metal to the original equipment copper-brass construction because it dissipates heat much more quickly and cools down much more rapidly. Heat transfer from your engine to the atmosphere is greatly increased, thereby lowering the temperature of the engine coolant dramatically. An aluminum radiator will out-cool a copper/brass radiator of similar size and construction by at least 40%. As a bonus, it's 50-75% lighter than your typical copper/brass radiator. Install this Champion high efficiency aluminum radiator in your classic and make cooling problems a thing of the past! Trust MAC's for all your Ford Mustang restoration, accessory, and performance needs.

DIMENSIONS: 19.63" wide (with brackets) x 21" tall (21.5" with cap).

CORE: 17.25" wide x 16.38" tall x 1.75" thick.

INLET: 1.5" passenger side.

OUTLET: 1.75" passenger side.

TANKS: 2.5" thick.

TUBES: 0.75" thick.

MOUNT TYPE: Bracket.


NOTE: One 16" electric cooling fan is recommended for this core size.

1964-66 Ford Mustang Champion 2-Row Aluminum Radiator For 260/289 V8

Combined Cancer/Birth Defect
WARNING This product can expose you to chemicals including Cadmium which is known to the State of California to cause cancer on birth defects or other reproductive harm. For more information, visit www.p65warnings.ca.gov
More Information
Base Part Number 360880
Eck OEM Number EC259
Brand Champion Radiators
Availability Ships Direct From Manufacturer

Products from the same brand

Make / Model Series Body Notes Year
Make / Model Ford Falcon Series Body Notes 260/289/302 V8 Or 3.3L 6-Cylinder Year 1962, 1963, 1964, 1965
Make / Model Ford Mustang Series Body Notes 260/289 V8 Year 1964, 1965, 1966
Make / Model Ford Mustang Base Series Body Notes Year 1964, 1965
Make / Model Ford Mustang Shelby GT-350 Series Body Notes Year 1965
Make / Model Ford Ranchero Series Body Notes 260/289/302/352 V8 Year 1962, 1963, 1964, 1965
Make / Model Mercury Comet Series Body Notes 260/289/390/427 V8 Year 1964, 1965, 1966
