63-66 Sniper EFI Tank Kit 255 LPH

Item EK-61-884608-1
63-66 Sniper EFI Tank Kit 255 LPH
Verify parts fit and get product recommendations.
Chevy/GMC Trucks Sales Techs: Connect Now M-F 8:30A-11P, Sat-Sun 8:30A-9P
Call now 1-877-305-8966 Chat Now
$0.00
Want $10? Write one of the first 5 reviews
On Sale

$668.75

Market Price $809.99 You Save 17% ($141.24) Up to 10% off for Military & First Responders! See Details

Will this fit your Vehicle?

Select a different vehicle Help?
Update or Change Vehicle
Ship to: Columbus - 43215
Sorry, please enter a valid US or CA postal code
We're sorry, zip can't be updated at this time.
Add to Cart
Save for later
    Create a list
    Add to New List

    Saved - View your saved items

    We're sorry. We couldn't save this product at this time.

    or use

    Loading Indicator

      Product Information

      Features, Description, Q&A

      Features

      • Tanks are coated galvanized steel then powder coated silver for total corrosion protection
      • 18 gallon capacity
      • 255 lph fuel pump with hanger assembly gives you the fuel you need with in-tank quietness
      • Sender has 1/4 inch NPT Supply and Return line ports for easy fuel line connection and a barbed vent fitting
      • Fuel level sender included with the correct Ohm range for your factory gauges

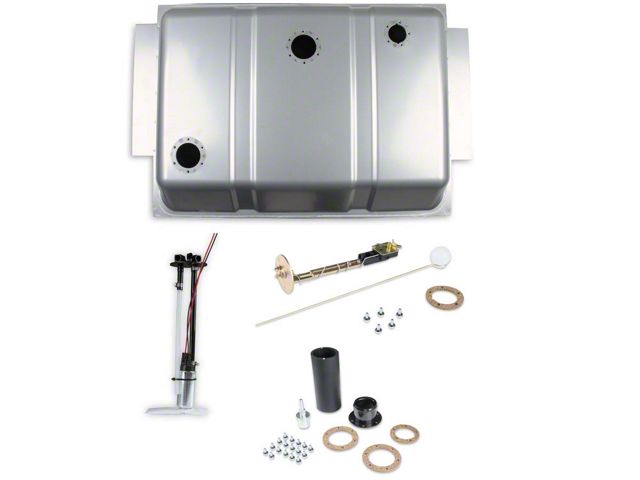

      • Kit includes the tank, a 255 lph fuel pump, internal baffling, and a fuel level sender
      • See the installation video here

      Description

      The Sniper 19-184 fuel system kit is designed for the 1963-66 Chevy/GMC trucks. This fuel tank mounts under the truck bed using the flanges to bolt in place. The tank is designed to bolt up to the bottom side of the frame rails but it can be mounted in different configurations including on top or even in-between the rails in some cases. It is up to the installer to drill and locate the mounting holes. Supports up to 550 EFI ( 60 PSI at 13.5 Volts / 10.4 AMP Draw) Size is 32-1/4 x 20-1/2 x 9-3/4 (including the mounting flange)Size is 28 x 20-1/2 x 9-3/4 (measured without the mounting flange) Mounting hardware is not included.The fuel filler neck will go up through the bed floor. The tank is powder coated for corrosion resistance and great looks.


      Chevro
