SKU
61-156617-1
Alt #:
122102

Classic Update Harness,60-66

0% of 100
0  Reviews Add Your Review
$539.99 Each
Fitment
C20 Pickup, 1960 thru 1966 View More
Product Details
Kit Includes: Standard turn signal flasher, hazard flasher, and horn relay mounted on fuse panel. Fuse box and custom mounting plate are designed for bolt-in under dash installation. All required hardware supplied. Location selected for easy accessibility and clearance of under dash accessories such as all gauge packages, wiper systems, heating and air conditioning systems, and stock original or aftermarket GM tilt steering columns. New floor dimmer switch is provided. Wire length and connection accommodate original floor mount dimmer switch. Instrument Cluster wiring is designed with a "cluster harness disconnect" system for easy service and assembly. All original terminals, connectors, and light sockets are also supplied for original cluster gauges. However, the best aspect to the disconnect system is that any gauge cluster package can be easily and neatly wired in. This includes AUTOMETER, CLASSIC INSTRUMENTS, DAKOTA DIGITAL, STEWART WARNER, and VDO, just to name a few. Along with wiring for your original dome/interior lighting we have included separate under dash light sockets. Heater control panel lighting, power, and blower motor leads are included for original style heaters as well as aftermarket heat and AC updates such as HOTROD AIR, VINTAGE AIR, etc. Connections are also wired in for the glove box and cigarette lighter. Engine wiring includes connectors for points type and H.E.I. distributors. Power and tach connectors supplied for GM H.E.I. distributors. Alternator connectors are supplied for GM "SI" series internal regulated and all "one wire"alternators. GM "CS" series alternator connector available separately. Front lighting includes extra long leads for special routing when custom under hood appearance is desired. All headlight, park light, and directional light connectors and terminals are provided, as well as a switched trigger wire for electric fan relay (usually recommended with AC). Replacement headlight switch with internal circuit breaker included. Retention collar nut, adjustable length shaft, and custom knob are also included. Extra connectors and instructions are supplied for installation of original headlight switches. If you choose to install a late model GM steering column with the ignition switch in the column we include the correct connectors for that as well! Steering column connectors will plug directly into most aftermarket steering columns as well as 1969 and later GM columns which utilize stock GM turn signal switches. The original column can also be wired by using the supplied mating connector and terminals. New ignition switch is included. Additional connectors and instructions are provided to use the original ignition switch or column mounted ignition switch.. Engine wiring includes starter and gauge sender leads for water temp, oil pressure, voltmeter, and tach. Heavy 8 gauge alternator leads are supplied. Power circuits are fusible link protected. Rear body harness assembly is designed to plug into the main harness in the original position utilizing existing retainers. Flexibility in harness design allows for original or custom routing. Both pickup and suburban models are accommodated. Rear body wiring includes backup light wires and mating connectors for backup light leads. License plate lead, connectors, and terminals included. Fuel tank sender wire and terminal included. Leads and terminals included for jamb switches and dome light. Color schematics and easy to understand installation instructions included. The Short And Long Of Chevy Water Pumps Chevy mechanical short style water pumps measure 5-5/8??? high from the shaft down with the pilot shaft diameter measuring 5/8". Long style Chevy water pumps measure 7??? high from the shaft down, and the pilot shaft diameter was 5/8" as well. Do not mix and match pulleys from short and long water pump engines because this will cause pulley misalignment. An easy way to find out what style you have while your pump is still installed on the engine is to try to stick your hand between the water pump and timing chain cover. If you can slip your fingers in-between you have a long, if not you have a short. Chevrolet Truck 1960 Chevrolet Truck 1961 Chevrolet Truck 1962 Chevrolet Truck 1963 Chevrolet Truck 1964 Chevrolet Truck 1965 Chevrolet Truck 1966  1960-1966 Chevrolet C10-C20-C30 Truck Classic Update wiring kit by American Autowire replaces old outdated original wiring with total vehicle updated wiring to support modern electronics
Availability: Out of stock
    • Replacement Kit
    • Completes Updated Wiring For Entire Truck
    • Includes ATO Fuse Panel
    • Ideal When Building A Truck With Custom Accessories

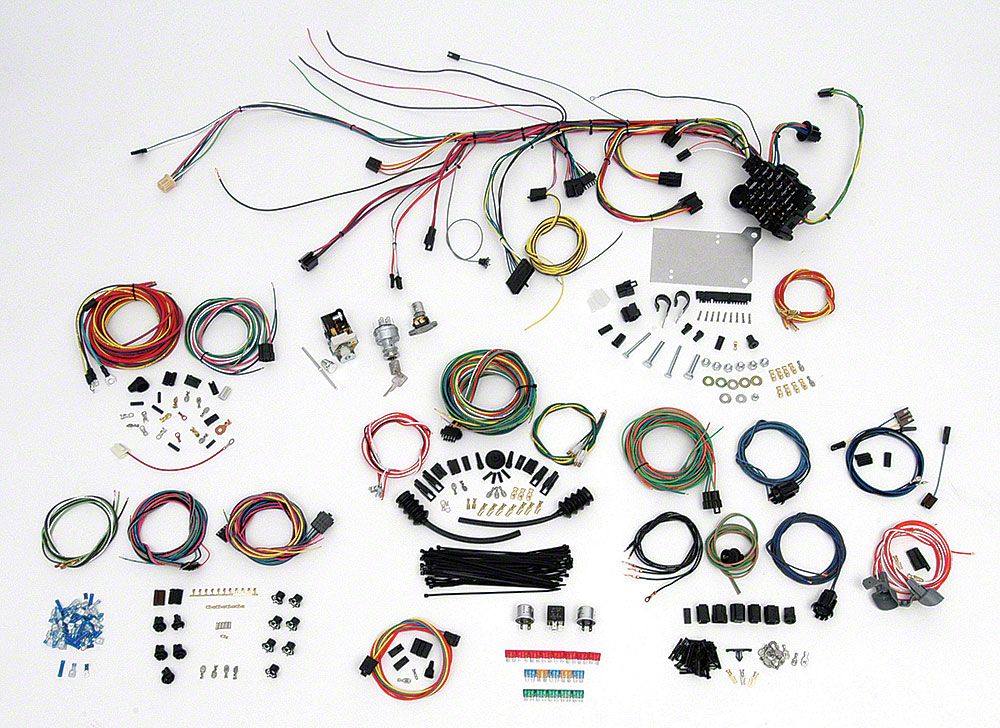

Kit Includes:

  1. Standard turn signal flasher, hazard flasher, and horn relay mounted on fuse panel.
  2. Fuse box and custom mounting plate are designed for bolt-in under dash installation. All required hardware supplied. Location selected for easy accessibility and clearance of under dash accessories such as all gauge packages, wiper systems, heating and air conditioning systems, and stock original or aftermarket GM tilt steering columns.
  3. New floor dimmer switch is provided. Wire length and connection accommodate original floor mount dimmer switch.
  4. Instrument Cluster wiring is designed with a "cluster harness disconnect" system for easy service and assembly. All original terminals, connectors, and light sockets are also supplied for original cluster gauges. However, the best aspect to the disconnect system is that any gauge cluster package can be easily and neatly wired in. This includes AUTOMETER, CLASSIC INSTRUMENTS, DAKOTA DIGITAL, STEWART WARNER, and VDO, just to name a few.
  5. Along with wiring for your original dome/interior lighting we have included separate under dash light sockets.
  6. Heater control panel lighting, power, and blower motor leads are included for original style heaters as well as aftermarket heat and AC updates such as HOTROD AIR, VINTAGE AIR, etc. Connections are also wired in for the glove box and cigarette lighter.
  7. Engine wiring includes connectors for points type and H.E.I. distributors. Power and tach connectors supplied for GM H.E.I. distributors. Alternator connectors are supplied for GM "SI" series internal regulated and all "one wire"alternators. GM "CS" series alternator connector available separately.
  8. Front lighting includes extra long leads for special routing when custom under hood appearance is desired. All headlight, park light, and directional light connectors and terminals are provided, as well as a switched trigger wire for electric fan relay (usually recommended with AC).
  9. Replacement headlight switch with internal circuit breaker included. Retention collar nut, adjustable length shaft, and custom knob are also included. Extra connectors and instructions are supplied for installation of original headlight switches.
  10. If you choose to install a late model GM steering column with the ignition switch in the column we include the correct connectors for that as well!
  11. Steering column connectors will plug directly into most aftermarket steering columns as well as 1969 and later GM columns which utilize stock GM turn signal switches. The original column can also be wired by using the supplied mating connector and terminals.
  12. New ignition switch is included. Additional connectors and instructions are provided to use the original ignition switch or column mounted ignition switch..
  13. Engine wiring includes starter and gauge sender leads for water temp, oil pressure, voltmeter, and tach. Heavy 8 gauge alternator leads are supplied. Power circuits are fusible link protected.
  14. Rear body harness assembly is designed to plug into the main harness in the original position utilizing existing retainers. Flexibility in harness design allows for original or custom routing. Both pickup and suburban models are accommodated. Rear body wiring includes backup light wires and mating connectors for backup light leads. License plate lead, connectors, and terminals included. Fuel tank sender wire and terminal included. Leads and terminals included for jamb switches and dome light.
  15. Color schematics and easy to understand installation instructions included.

The Short And Long Of Chevy Water Pumps

Chevy mechanical short style water pumps measure 5-5/8??? high from the shaft down with the pilot shaft diameter measuring 5/8". Long style Chevy water pumps measure 7??? high from the shaft down, and the pilot shaft diameter was 5/8" as well. Do not mix and match pulleys from short and long water pump engines because this will cause pulley misalignment. An easy way to find out what style you have while your pump is still installed on the engine is to try to stick your hand between the water pump and timing chain cover. If you can slip your fingers in-between you have a long, if not you have a short.

  • Chevrolet Truck 1960
  • Chevrolet Truck 1961
  • Chevrolet Truck 1962
  • Chevrolet Truck 1963
  • Chevrolet Truck 1964
  • Chevrolet Truck 1965
  • Chevrolet Truck 1966




1960-1966 Chevrolet C10-C20-C30 Truck Classic Update wiring kit by American Autowire replaces old outdated original wiring with total vehicle updated wiring to support modern electronics

1960-1966 Chevrolet C10-C20-C30 Truck Classic Update wiring kit by American Autowire replaces old outdated original wiring with total vehicle updated wiring to support modern electronics


Combined Cancer/Birth Defect
WARNING This product can expose you to chemicals including PHTHALATES which is known to the State of California to cause cancer on birth defects or other reproductive harm. For more information, visit www.p65warnings.ca.gov
More Information
Base Part Number 156617
Alt. # 122102
Brand American Autowire/Factory Fit

Products from the same brand

Make / Model Series Body Notes Year
Make / Model Chevrolet C10 Pickup Series Body Notes Year 1961, 1962, 1963, 1964, 1965, 1966
Make / Model Chevrolet C20 Pickup Series Body Notes Year 1960, 1961, 1962, 1963, 1964, 1965, 1966
Make / Model Chevrolet K10 Pickup Series Body Notes Year 1960, 1961, 1962, 1963, 1964, 1965, 1966
Make / Model Chevrolet K20 Pickup Series Body Notes Year 1960, 1961, 1962, 1963, 1964, 1965, 1966
Make / Model Chevrolet Suburban Series Body Notes Year 1960, 1961, 1962, 1963, 1964, 1965, 1966
Make / Model Chevrolet Truck Series Body Notes Year 1960, 1961, 1962, 1963, 1964, 1965, 1966
Make / Model GMC 1500 Series Body Notes Year 1966
Make / Model GMC Suburban Series Body Notes Year 1960, 1961, 1962, 1963, 1964, 1965, 1966
