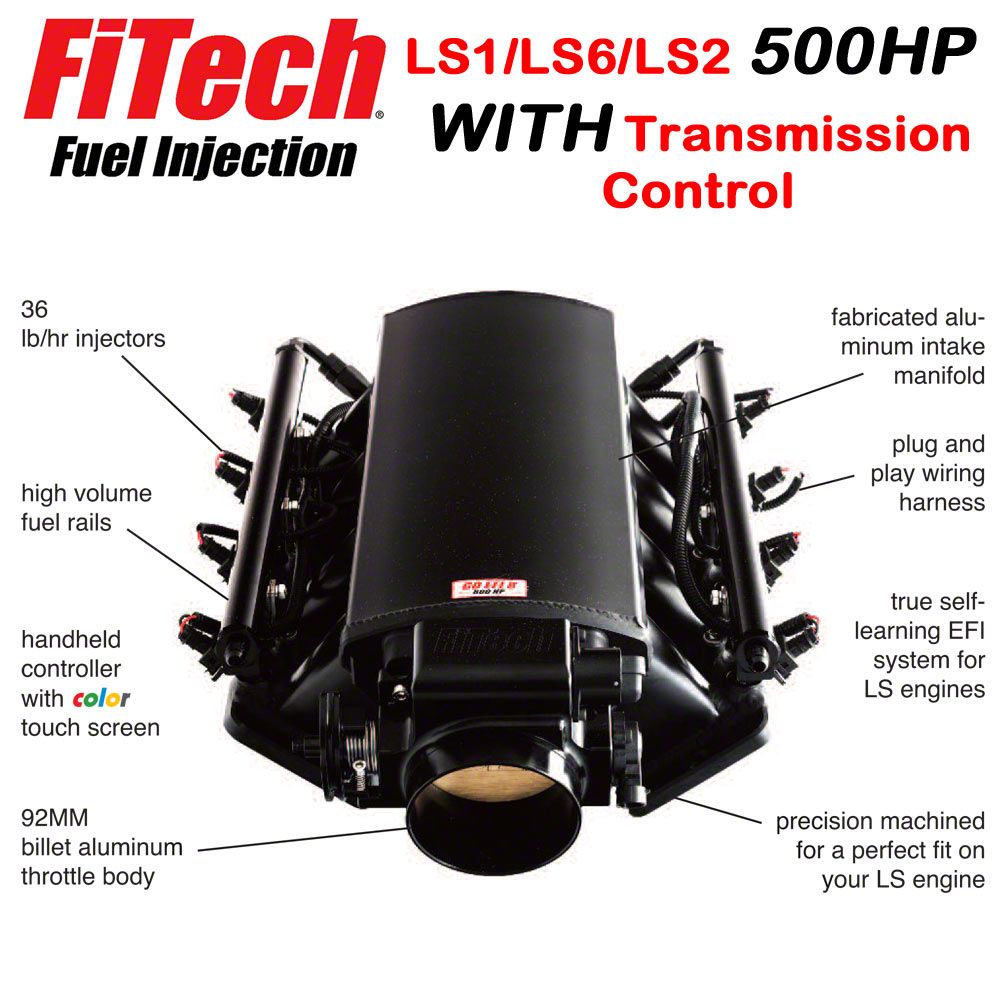

FiTech Fuel Injection Ultimate LS1/LS2/LS6 500HP Intake Manifold Kit with 92mm Throttle Body and Trans Control (Universal; Some Adaptation May Be Required)

Name: FiTech Fuel Injection Ultimate LS1/LS2/LS6 500HP Intake Manifold Kit with 92mm Throttle Body and Trans Control (Universal; Some Adaptation May Be Required)
Brand: FiTech Fuel Injection
SKU: EK-53-389119-1
Price: 2107.00 USD
Availability: InStock

Item EK-53-389119-1

Shop Owners Save More! Sign up for our dealer program

Join For FREE

Product Information

Features, Description, Q&A

Features

Ultimate LS1/LS2/LS6 500HP Kit With Trans Control
Designed For LS Street And Performance Engines With A 1500-6500 RPM Power-Band Up To 500 HP
Fits Cathedral Port LS1/LS2/LS6 Heads
Suitable For 4L60, 4L65, 4L80, Or 4L85 GM Electronically Controlled Automatic Transmissions
Includes 92mm High Flow Cable Operated Throttle Body Sits At 7 Degrees
Intake Manifold Is 6.5 Inches Tall
Fabricated 3mm Thick Aluminum Sheet Metal TIG Welded Intake Manifold
Billet Fuel Rails With AN Fittings And Fuel Crossover
Self-Learning ECU With Touch Screen Controller
Sequential Fuel And Spark Control With Individual Cylinder Trim
Bosch Wide Band Controlled
Compatible With 24X And 58X Crank And Cam Sensors
Includes TPS, IAC Sensor, Tach Output Driver, Speedometer Output Driver
Compatible With Car And Truck Coils
36 lb/hr Flow-Matched Injectors Included
Custom Wiring Harness Uses Factory Coil Pack Sub Harness
Includes Stainless Oxygen Sensor Bung For Clamp Or Weld On
Throttle Body Mounting Flange Is GM LS2 4-Bolt
Airflow Rate Of 1250 CFM
Throttle Body Made Of Cast Aluminum With Black Finish
Injection Style Is Multi-Port
Timing Control Compatible
Power Adder Compatible For Boost Or Nitrous Oxide
Includes ECU, Transmission Controller, Calibration Module, Wiring Harness, Wide Band O2 Sensor, TPS Sensor, MAP Sensor, IAT Sensor
Fuel Pump And Fuel Pressure Regulator Not Included
Intake Finish Is Black Anodized
Engine Block Deck Height Standard Deck
Fuel Type Compatible With Alcohol, Gasoline, Methanol, Flex
Fits Cathedral Port LS1/LS2/LS6 Heads With Supported Electronic GM Transmission Control
Excludes Use On Pollution Controlled Vehicles And CARB Emission-Controlled Applications

Description

Complete Intake Solution. The FiTech Fuel Injection Ultimate LS1/LS2/LS6 500HP Intake Manifold Kit with 92mm Throttle Body and Trans Control is a self-tuning induction system designed for LS engines delivering up to 500 HP. It provides a comprehensive package including intake manifold, fuel injection, and electronic transmission control, simplifying installation for enthusiasts and professional tuners alike. This kit replaces factory hardware for quicker, more reliable engine management and performance upgrades.

Construction and Appearance. This system features a fabricated 3mm thick aluminum sheet metal intake manifold with TIG welding, finished in black anodized coating for durability and aesthetics. The 92mm throttle body is crafted from cast aluminum with a sleek black finish, while billet fuel rails with AN fittings ensure high-quality fuel delivery and reliability.

Installation. Installation is straightforward with no major modifications or drilling required. This plug-and-play system is compatible with factory coil pack sub-harnesses. The transmission control feature interfaces directly with supported GM electronically controlled automatic transmissions for seamless integration.

Warranty. This kit includes a three-year limited warranty providing assurance against manufacturing defects.

Application. Fits Cathedral Port LS1/LS2/LS6 heads and GM 4L60, 4L65, 4L80, or 4L85 electronic transmissions. Not legal for use on pollution controlled vehicles and excludes CARB emission-controlled applications.

FiTech Fuel Injection 70002
