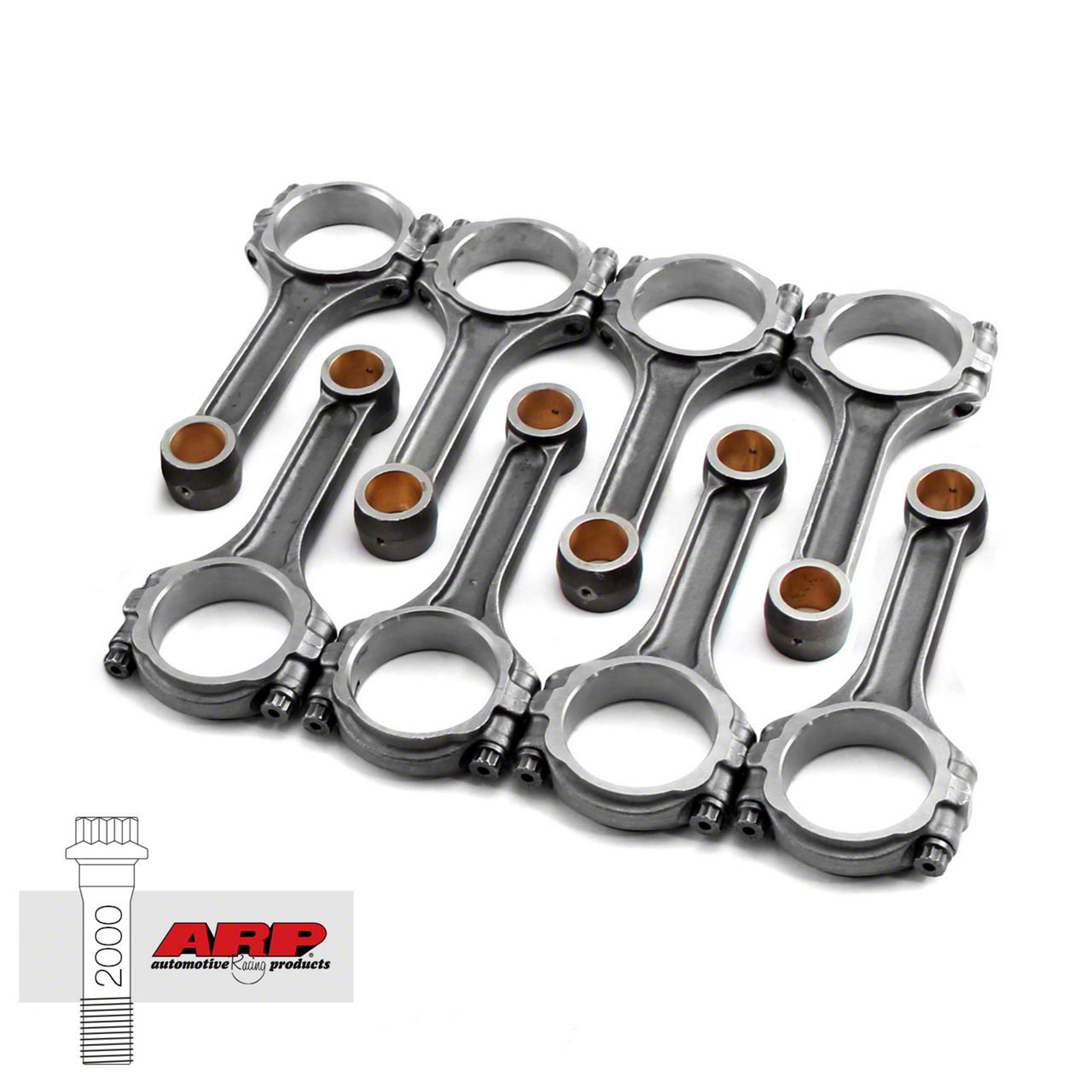

Speedmaster Chevy 350 5140 Connecting Rods with ARP 2000 Bolts; 5.700-Inch Rod Length; I-Beam

These Speedmsater I-beam connecting rods incorporate all of the best features possible for an I-beam rod, including some strength adders found in H-beam designs. Speedmaster I-beam connecting rods are profiled with clearance for long stroke applications. These connecting rods feature a one-rib cap design for added strength and bearing support, polished beams to eliminate stress risers. | Brand:Speedmaster
Part Number:1-274-003
Part Type:Connecting Rod
Product Line:I-Beam
Connecting Rod Length Center to Center (in):5.700 in.
Connecting Rod Beam Style:I-beam
Connecting Rod Material:Forged 5140 steel
Connecting Rod Finish:Shot-peened
Wrist Pin Style:Floating
Clearanced for Stroker:No
Cap Retention Style:Cap screw
Connecting Rod Bolt Brand:ARP
Connecting Rod Bolt Diameter:3/8 in.
Connecting Rod Bolt Material:ARP2000 alloy
Fastener Yield Strength (psi):220,000 psi
Connecting Rod Bolt Head Style:12-point
Approximate Connecting Rod Weight (g):n/a
Rod Journal Diameter (in):2.100 in.
Big End Bore Diameter (in):n/a
Pin End Bore Diameter (in):0.927 in.
Big End Width (in):0.945 in.
Advertised Horsepower Rating (hp):600 hp
Advertised RPM Rating:6,500 rpm
Weight Matched Set:Yes
Remanufactured:No
Magnafluxed:Yes
Quantity:Sold as a set of 8.
Tool:Stroker Combinations
