Weld-On Triangulated 4-Link Air Ride Suspension Kit (Universal; Some Adaptation May Be Required)

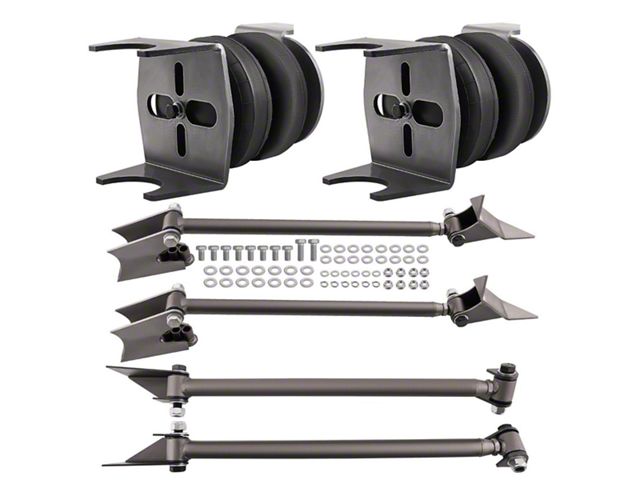

Package Includes4 x Heavy Duty Steel Bars \4 x Zinc Plated Steel Rod Ends W/ Urethane Bushings\2 x Steel, Weld-On Triangulated Frame Mounts \2 x Steel, Weld-On Lower Axle Tube Mounts \4 x Steel, Weld-On Center Link Axle Mounts\2 x Steel, Weld-On Side Frame Mounts \8 x Button Head Bolts with Nyloc Nuts\2 x Weld-On Lower Axle Bag Mount\2 x Weld-On Upper Frame Bag Mount\2x Standard 2500 Single 1/2"npt Port Air Bags4 Link Bar DimensionsDOM Tubing Outside Diameter :1.25" \DOM Tubing Thick Wall :156" \All Four Bars :24.00" \(Center To Center Adjusted All The Way In)Specs of bag2500 LBS\Diameter: 6"\Extended:8"\Closed:2.75"\Two Top Mounting Holes : Approx 1-3/4" from Eye to Eye\Bottom has One Mounting Hole in Center\All mounting holes are 3/8"-16 UNCFeatureInstructions Are Not Included\We Recommend Professional InstallationNoticeUniversal Rear Weld-On Triangulated 4 Link Suspension Kit with Two 2500 Air Bags & Rear Air Bag MountsThe rod is available in silver and black, please refer to the actual product receivedPlease feel free to contact us for whatever we can help with!
