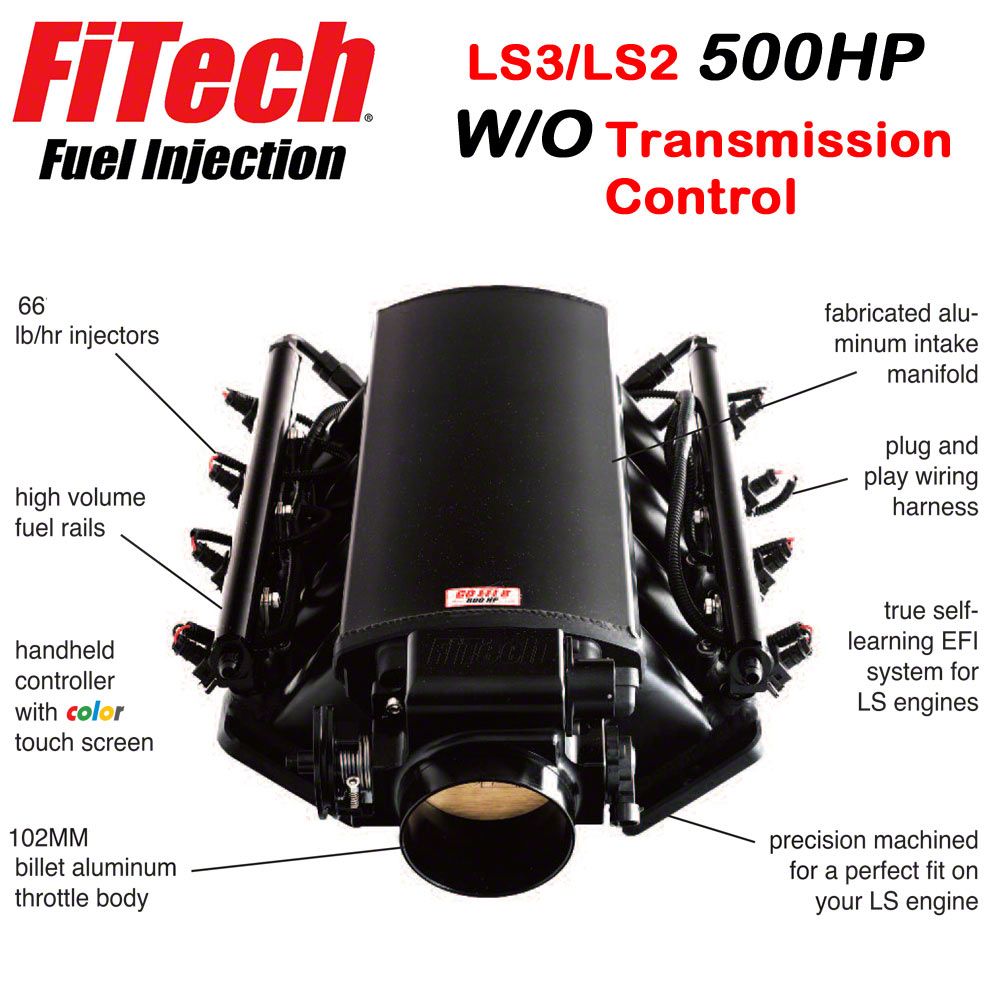

FiTech Fuel Injection Ultimate LS3/L92 500HP Intake Manifold Kit (Universal; Some Adaptation May Be Required)
Item EK-55-389142-1
Our Price
$1,896.00
Military, Medical & First Responders
$94.80 Available in EK Cash Rewards.
Confirm Eligibility
Confirm Eligibility
Choose options to add to cart.
Saved - View your saved items
We're sorry. We couldn't save this product at this time.
or use
Shop Owners Save More!
Sign up for our dealer program
Product Information
Features, Description, Q&A
Features
- Weight 34 Lbs
- Dimensions 29 × 17 × 11 In
- Maximum Horsepower 500 HP
- Injection Style Multi-Port
- Timing Control Compatible Yes
- Power Adder Compatible Yes
- Power Adder Type Boost/Nitrous Oxide
- ECU Included Yes
- Fuel Pump Included No
- Transmission Controller Included No
- Metering Style Speed Density (Map-N)
- Intake Manifold Included Yes
- Intake Section Included Complete
- Intake Material Aluminum
- Intake Finish Black Anodized
- Engine Block Deck Height Standard Deck
- Multi-Port Fuel Rails Included Yes
- Throttle Body Mounting Flange GM LS2 4-Bolt
- Venturi Quantity 1
- Venturi Diameter (mm) 92 Mm
- Airflow Rate (cfm) 1250 Cfm
- Throttle Body Material Cast Aluminum
- Throttle Body Finish Black
- Injectors Included Yes
- Injector Size (Lbs/Hr) 36 Lbs./Hr.
- Calibration Module Included Yes
- Wiring Harness Included Yes
- Oxygen Sensor Included Yes
- Fuel Pressure Regulator Included No
- MAP Sensor Included Yes
- IAT Sensor Included Yes
- TPS Sensor Included Yes
- Quantity Sold As A Kit
- Universal No
- Fuel Type Alcohol, Gasoline, Methanol, Flex-Fuel Compatible
- Fits LS3 And L92 Engines
Description
Complete EFI Solution. The FiTech Fuel Injection Ultimate LS3/L92 500HP Intake Manifold Kit delivers a fully integrated electronic fuel injection system designed specifically for LS3 and L92 engines. It includes all necessary components for efficient fuel delivery and engine management, supporting up to 500 horsepower while enabling a reliable and customizable setup for various performance applications.
Construction and Appearance. Crafted from high-grade aluminum, the intake manifold features a durable black anodized finish for corrosion resistance and an attractive appearance. The throttle body is constructed from cast aluminum and finished in black to complement the manifold. Precision engineering ensures optimal airflow with a single 92mm venturi delivering 1250 cfm, supporting both performance and efficiency.
Installation. Installation is straightforward for users familiar with EFI systems and LS engine platforms. It requires no major modifications or drilling. The kit includes a complete wiring harness and all necessary sensors for seamless integration with factory and aftermarket components.
Warranty. This product is backed by a 3-year limited warranty, providing assurance of quality and reliability.
Application. Designed exclusively for LS3 and L92 engine platforms, this kit is not universal and fits these engines directly without the need for adaptation.
