Universal Firewall Mount 90-Degree Under Dash Brake Pedal (Universal; Some Adaptation May Be Required)

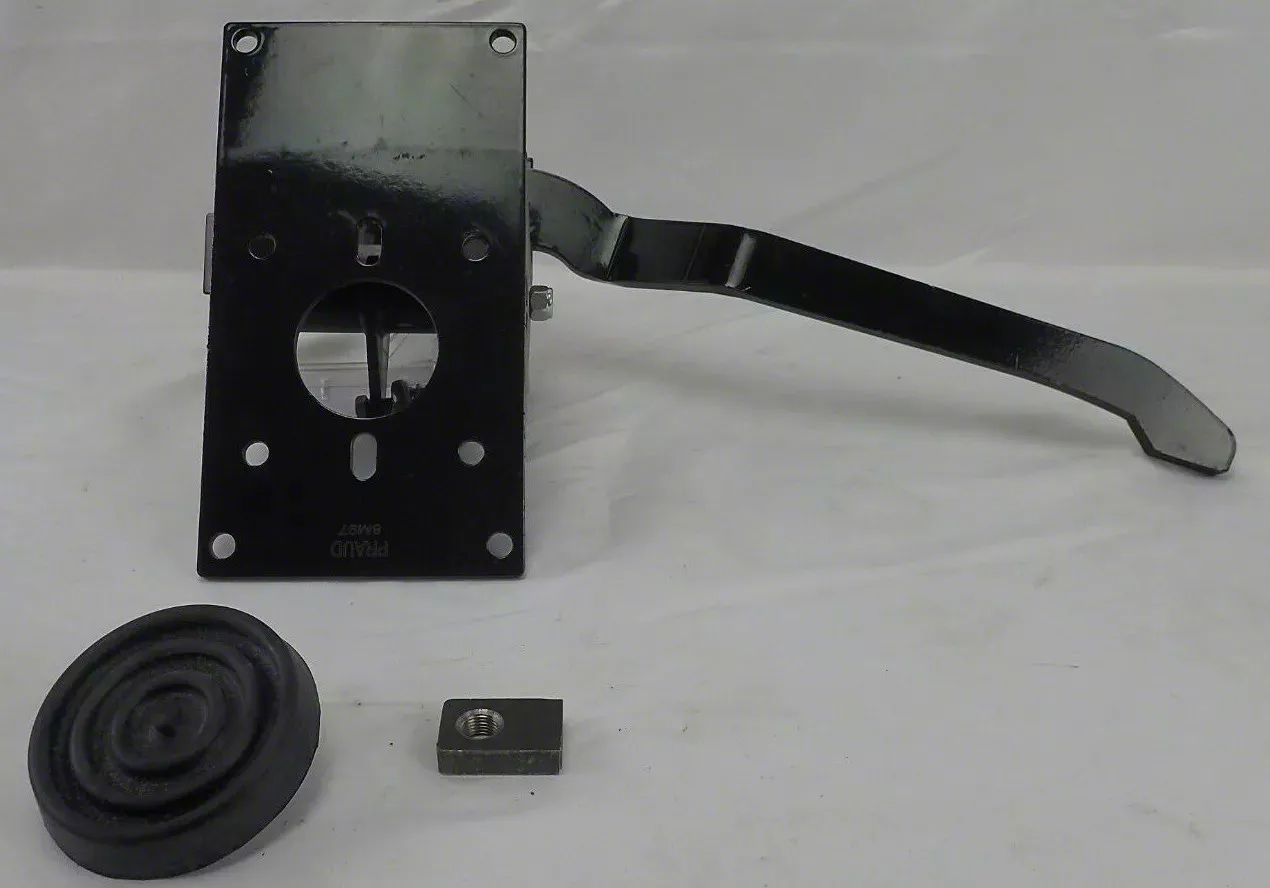

Universal Under Dash 90 Degree Brake Pedal90 degree under dash brake pedal mounts to the firewall and the pedal arm hangs down into the car. This will mount the booster and master cylinder 90 degrees to the side, not sticking out into the engine compartment. This pedal is designed for brake boosters with a 3 3/8" square mount pattern. The Heim Joint is included to hook to the booster. Pedal includes a weld on tab with a threaded hole for the brake pad. Once you have the pedal arm where you want it, weld on the tab for the brake pad.This can be used with a manual master cylinder with a two bolt 3 3/8" mount distance. An additional rod is required from the Heim Joint to the master cylinder (not included).
