SKU
50-384476-1

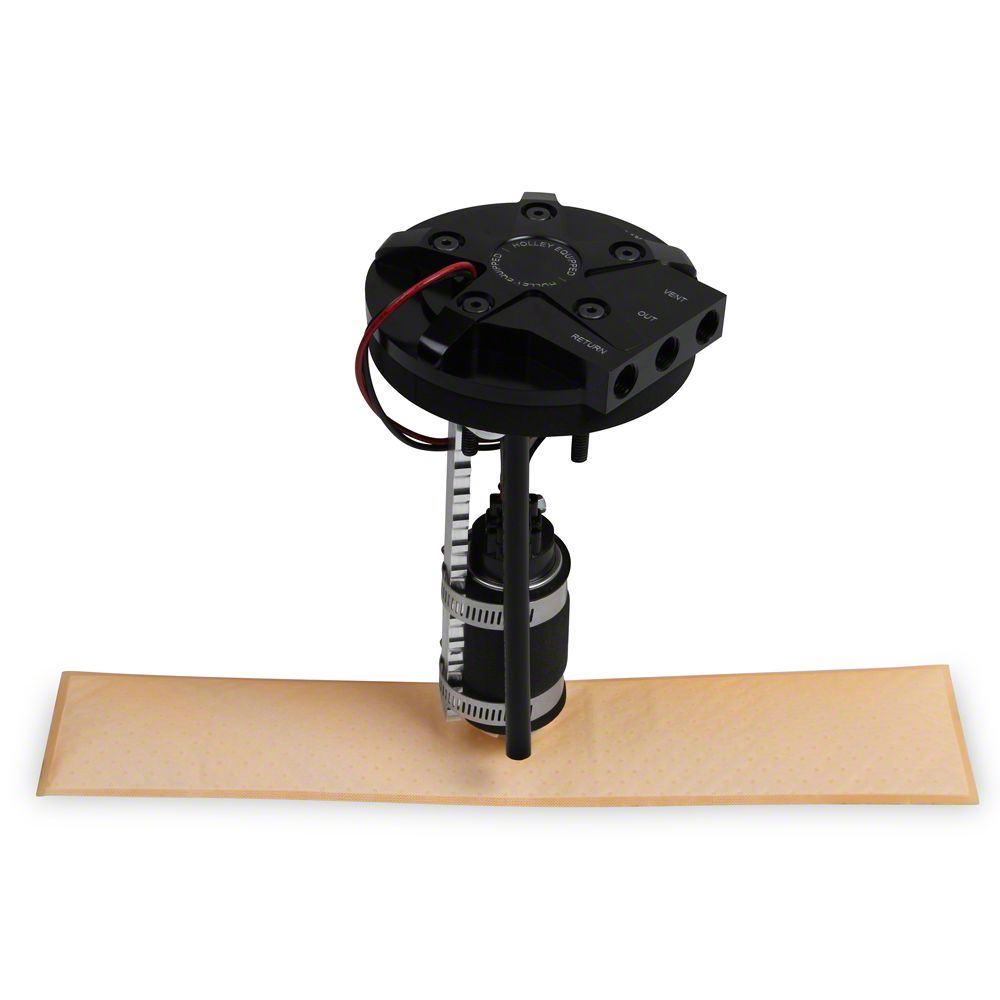

Holley Sniper 255LPH Return Style In-Tank Fuel Module

0% of 100
0  Reviews Add Your Review
$527.99 Kit
Product Details
KEY FEATURES & BENEFITS: 255LPH EFI Return Style ... View More
Availability: Ships Direct From Manufacturer

KEY FEATURES & BENEFITS:
  • 255LPH EFI Return Style In Tank Fuel Pump Conversion Kit
  • The Easiest Way To Convert Your Vehicle To An In-Tank, EFI Fuel System
  • Installs In Any Fuel Tank From 6.5" To 12" Deep To Fit A Wide Variety Of Applications
  • The Low Profile Design Is Only 1.275" Thick Above The Tank Mounting Surface For Added Clearance When Needed
  • The Innovative Clamping System Allows You To Locate The Module Anywhere In The Tank Beside Your Existing Sending Unit
  • The Clamping System Allows You To Rotate The Unit 360 Degrees For Easier Clocking Of The Plumbing And Wiring Locations Under Your Ride
  • Includes Innovative Holley Hydramat To Ensure Consistent Fuel Supply.  The 3"x15" HydraMat Mounting Flange Has 6 Clocking Pin Locations To Allow For 360 Degree Adjustment To Clear Sending Unit Levels Or Any Tank Floor Restrictions That You Might Encounter
  • Black Anodized Aluminum Construction For Corrosion Resistance And Long Lasting Good Looks
  • 1/4" NPT Ports For A Wide Variety Of Plumbing Applications
  • Ideal For ANY EFI Conversion
  • Notes:  Installation Requires The Following Items Which Are NOT Included - Holley HP Billet Filter or Equivalent, Fuel Hose & Fittings (Threads In Pump Are 1/4" NPT), & Relay Kit (30 AMP With A Minimum Of 12 Gauge Wire)

SPECIFICATIONS:

  • Quality Level:  High Performance Upgrade
  • Sending Unit Included:  No
  • Flow Rate: 255 LPH (Liters Per Hour)
  • Max Pressure:  60 PSI
  • Max HP Supported:  550HP (EFI) or 700HP (Carbureted) @ 60 PSI at 13.5 Volts / 10.4 AMP Draw
  • Fuel System Type:  Return Style Only
  • Works With Returnless Fuel Systems:  No
  • Inlet Size & Outlet Size  1/4 In. NPT
  • Inlet & Outlet Quantity:  One
  • Inlet & Outlet Attachment:  Female Threads
  • Dimensions:  Fits Fuel Tanks From 6.5" to 12" Deep.
  • What's In The Box:  255LPH Fuel Pump, Fuel Pump Hanger Assembly, Foam Gasket Ring, 24" Long Foam Spacer Strips, Pump Clamps, Hose Clamps, Fuel Pump Module, 3" x 15" Holley HdraMat, Installation Instructions
  • Where It's Made: USA
  • Manufacturer Limited Warranty:  90-Day
  • Product Weight: 3.5lbs.
  • Product Dimensions:  18.25" x 5.88" x 6.06"
  • Approx. Installation Time:   4-5 Hours, Experienced Mechanic Times Quoted, Yours May Take Longer
  • Installation Difficulty:   Difficult, Seek Professional Installation
Holley in-tank retrofit fuel modules are the easiest way to convert your vehicle's factory tank or fuel cell to an in-tank, EFI fuel system—and gain all the benefits of a Holley Hydramat reservoir, as well. This conversion requires only basic tools, no welding or fabrication. The low-profile, aluminum module design includes a billet pump hanger bracket to control vibration; Holley's innovative clamping system and integrated fuel pump allow you to locate the module anywhere in the tank beside your existing sending unit. Once installed, simply hook up your fuel lines and your power source/ground, and you're ready to roll. Holley in-tank retrofit modules are available with fuel pumps for both return and returnless-style systems—and models to support various liters per hour (LPH).

Holley Sniper 255LPH Return Style In-Tank Fuel Module


Combined Cancer/Birth Defect
WARNING This product can expose you to chemicals including Cadmium which is known to the State of California to cause cancer on birth defects or other reproductive harm. For more information, visit www.p65warnings.ca.gov
More Information
Eck OEM Number 12-130
Brand N/A
Availability Ships Direct From Manufacturer

Products from the same brand

Make / Model Series Body Notes Year
Make / Model Series Body Notes Year 0
Make / Model Chevrolet Chevelle 300 Series Body Notes Year 1967, 1968
Make / Model Chevrolet Chevelle 300 Deluxe Series Body Notes Year 1967, 1968, 1969
Make / Model Chevrolet Chevelle Base Series Body Notes Year 1964, 1965, 1966, 1967, 1968, 1970, 1971, 1972
Make / Model Chevrolet Chevelle Concours Series Body Notes Year 1967, 1968, 1969, 1970, 1971, 1972
Make / Model Chevrolet Chevelle Concours Estate Series Body Notes Year 1969, 1970, 1971, 1972
Make / Model Chevrolet Chevelle Deluxe Series Body Notes Year 1965, 1966, 1967, 1973
Make / Model Chevrolet Chevelle Greenbrier Series Body Notes Year 1969, 1970, 1971, 1972
Make / Model Chevrolet Chevelle Malibu Series Body Notes Year 1968, 1969, 1970, 1971, 1972
Make / Model Chevrolet Chevelle Nomad Series Body Notes Year 1968, 1969, 1970, 1971, 1972
Make / Model Chevrolet Chevelle SS Series Body Notes Year 1964, 1965, 1966, 1967, 1968, 1969, 1970, 1971, 1972
Make / Model Chevrolet Malibu Base Series Body Notes Year 1964, 1965, 1966, 1967, 1973, 1974, 1975, 1976, 1977, 1978, 1979, 1980, 1981
Make / Model Chevrolet Malibu Classic Series Body Notes Year 1974, 1975, 1976, 1977, 1978, 1979, 1980, 1981, 1982, 1983
Make / Model Chevrolet Malibu Classic Estate Series Body Notes Year 1975, 1976, 1978, 1979, 1980
Make / Model Chevrolet Malibu Classic Landau Series Body Notes Year 1976, 1977, 1978, 1979, 1980, 1981
Make / Model Chevrolet Malibu Classic Sport Series Body Notes Year 1977, 1979, 1980
Make / Model Chevrolet Malibu Estate Series Body Notes Year 1973, 1974, 1979, 1980
Make / Model Chevrolet Malibu Landau Series Body Notes Year 1976, 1979
Make / Model Chevrolet Malibu Police Series Body Notes Year 1979
Make / Model Chevrolet Malibu Sport Series Body Notes Year 1977, 1979, 1980
