FiTech Fuel Injection Go EFI 2x4 Power Adder 1200HP Self Tuning Fuel Injection System; Matte Black (Universal; Some Adaptation May Be Required)
Item EK-85-394703-1
Shop Owners Save More!
Sign up for our dealer program
Product Information
Features, Description, Q&A, Specs & Installation
Features
- _x000D_
- Go EFI 2?4 Power Adder 1200HP Self-tuning Fuel Injection System _x000D_
- Suitable For Engines From 400HP To 1200HP _x000D_
- Designed For 671 And 871 Roots Superchargers Or Naturally Aspirated Dual Quad Setups _x000D_
- Works Out Of The Box On 2?4 Blower Plate Inline Setup Or Side Mounted With Custom Linkages _x000D_
- Bolt-on Fit For Popular Normally Aspirated Dual Quad And Tunnel Ram Manifolds _x000D_
- Compatible With Edelbrock Dual Quad Manifolds Without Adapters _x000D_
- Single Throttle Body Contains Control Electronics; Second Holds 4 Injectors _x000D_
- Application: Chevrolet, Pontiac, Ford, Chrysler, Dodge, Plymouth And Other Engines 250HP To1200HP _x000D_
- Replaces Dual Quad Carburetors Within Stated Horsepower Range _x000D_
- Uses Standard Air Cleaner For Dual Quad Carburetors _x000D_
- Features 2.5 BAR Internal MAP Sensor _x000D_
- Includes Eight Flow Matched Injectors _x000D_
- Supports Two Fan Controls _x000D_
- Compatible With Blower And Turbo Systems _x000D_
- Supports Nitrous Systems Including Boost And Timing Control _x000D_
- Ignition Timing Control Included _x000D_
- Built-in Fuel Pressure Regulator _x000D_
- Air/Fuel Ratio Tuning Capability _x000D_
- Includes Pro-tuning Laptop Software _x000D_
- Kit Contains Two Die-cast Throttle Bodies, O2 Bung Kit, Handheld Controller With Cable, CTS Sensor And Adapter, Windshield Mount, Mini USB Cable, 4+2-Pin Connector, Return Plugs, O2 Sensor, And Gasket Kit _x000D_
- Throttle Body Features Dual 4-barrel Square Bore _x000D_
- Throttle Body Venturi Quantity: 8 With 43mm Diameter _x000D_
- Airflow Rate: 1700 CFM _x000D_
- Throttle Body Material: Cast Aluminum _x000D_
- Throttle Body Finish: Satin Black _x000D_
- Injector Size: 80 Lbs/Hour _x000D_
- Calibration Module And Wiring Harness Included _x000D_
- Sensors Included: O2, MAP, IAT, TPS _x000D_
- Fuel Type Compatible With Alcohol, Gasoline, Methanol, Flex Fuels _x000D_
- Injection Style: Throttle Body Speed Density (MAP-N) _x000D_
- ECU Included; Fuel Pump And Transmission Controller Not Included _x000D_
- Sold Individually _x000D_
- Fits Universal; Some Adaptation May Be Required _x000D_
Description
High-Performance Fuel Injection System. The FiTech Fuel Injection Go EFI 2x4 Power Adder 1200HP Self Tuning Fuel Injection System; Matte Black delivers advanced fuel injection technology designed to support engines producing from 400 to 1200 horsepower. It replaces traditional dual quad carburetors, providing seamless integration with supercharged or naturally aspirated dual quad setups. This system enhances drivability and tuning precision for performance applications.
_x000D__x000D_Construction and Appearance. The system features two die-cast throttle bodies constructed from cast aluminum, finished in matte satin black for durability and aesthetic appeal. The throttle bodies include dual 4-barrel square bores with eight 43mm venturis, supporting an airflow rate of 1700 CFM. The components include flow-matched high-capacity injectors and precision sensors for optimal performance.
_x000D__x000D_Installation. Installation is straightforward with bolt-on compatibility for major dual quad and tunnel ram manifolds, including Edelbrock models, requiring no adapters. Minimal custom linkage work may be necessary for side mounting on blower plates; no drilling is typically required.
_x000D__x000D_Warranty. This system is backed by a comprehensive three-year limited warranty providing assurance in build quality and reliability.
_x000D__x000D_Application. Fits universal applications; some adaptation may be required depending on specific engine and manifold configurations. Designed for compatibility with various V8 engines such as Chevrolet, Ford, Chrysler, and others producing 250 to 1200 horsepower in dual quad intake setups.
CA Residents:
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Installation & What's in the Box

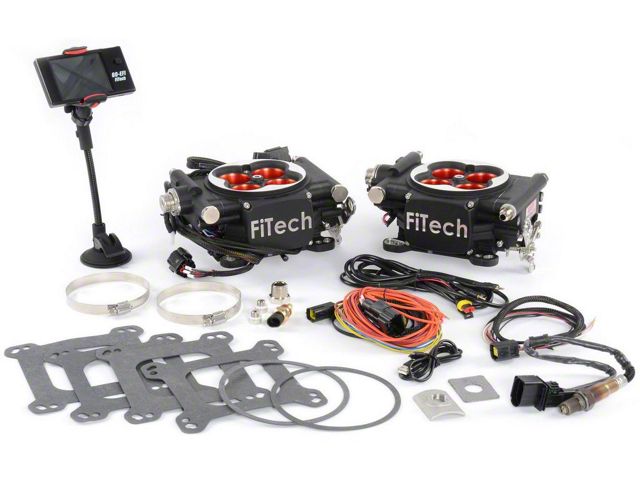

What's in the Box
- (2) Die-cast throttle body.
- (1) O2 bung kit.
- (1) Hand-held controller.
- (1) CTS sensor.
- (1) Hand-held controller cable.
- (1) CTS adapter.
- (1) Windshield mount.
- (1) Mini USB cable.
- (1) 4+2-Pin Connector.
- (2) Return plug.
- (1) O2 sensor.
- (1) Gasket kit.
