Product Information

Features, Description, Q&A

Features

Gm Ls1/Ls6 (24x Crank Sensor) With Jetronic/Minitimer (Bosch Type) Connectors On Injector Harness
Includes Ntk Oxygen Sensor
Legal For Sale And Use On Uncontrolled Non-Emissions Controlled Vehicles
Ecu Certified To Iso 8846, Sae J1171 & United States Coast Guard Requirements For Ignition Protection & Fire Resistance
1-5 Bar Map Sensor Capability
Laptop Programmable Ecu Includes Variety Of Base Maps
Sealed Automotive And Marine Grade Connectors
Supports Boost, Nitrous, Water/Meth, Individual Cylinder Control And More
Recommended Ntk Oxygen Sensor For Leaded Or Methanol Fuels, High Exhaust Temperatures And Forced Induction
Compatible With Stock 5.3l Engine Swaps And 3,000+ Horsepower Race Cars
Optional Hand-Held Programmer, 5.7” Touchscreen And Digital Gauges Available
Fully Potted Ecu Suitable For Engine Compartment Or Interior Mounting
Industry Leading Self Tuning Fuel Strategy
More Functionality Than Oem Or Competitive Ecu Including Boost, Nitrous, Water/Meth Injection, Fan, Pump And Relay Controls
Simple Installation With Plug And Play Control For Gm Ls1/Ls6 Engines

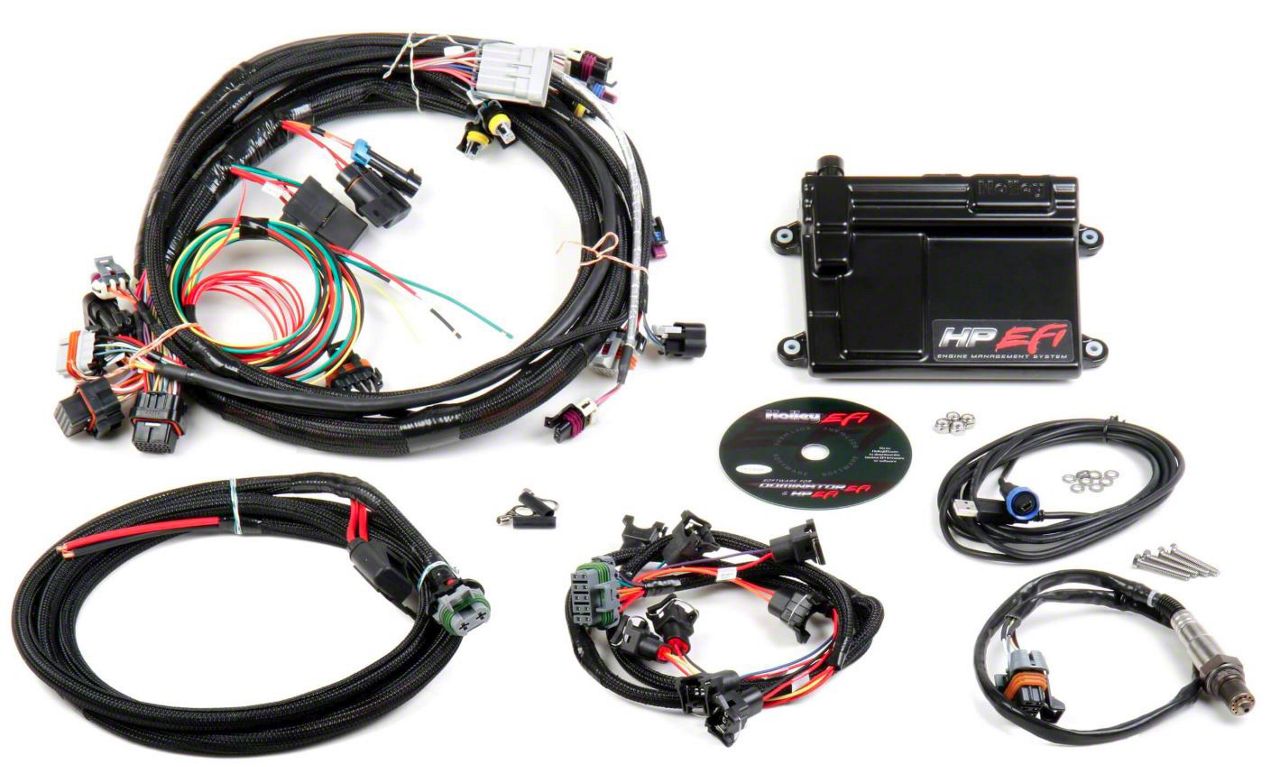

Kit Includes Ecu, Harness, Communication Cable, Software And Ntk Wideband 02 Sensor
Accelerometer Support
Boost Control
Can-Bus Support
Coil Per Cylinder Ignition Support
Crank Reluctor 24x
Datalogging Support
Dry Nitrous Control
E85 Support
Egt Support
Emission Code 3
Forced Induction Support
Fuel Filter, Fuel Hose, Fuel Injectors, Fuel Pressure Regulator Or Fuel Pump Not Included
Performance Grade
Ignition Timing Control
Ignition Type Gm Ls 24x
Individual Cylinder Fuel Corrections
Injector Connector Jetronic / Minitimer (Bosch)
Knock Retard Support
Multi-Stage Nitrous Control
Part Type Fuel Injection Conversion Kit
Progressive Nitrous Control
Self-Tuning
Sub Category Service Kits
Throttle Position Sensor Not Included
Traction Control Support
User-Tuneable
Wet Nitrous Control
Fits Gm Ls Engines Including Ls1/Ls6 With Factory Coils And 24 Tooth Crank Sensor

Description

High-Performance Engine Management. The Holley EFI GM LS1/LS6 HP EFI ECU and Harness Kit is designed to deliver precise fuel and ignition control tailored for GM LS engines. It optimizes engine performance from stock to highly modified setups, including boost, nitrous oxide, or water/methanol injection, simplifying tuning by eliminating the need to reflash factory ECUs during upgrades.

Construction and Appearance. This system features a fully potted ECU for maximum durability, resistant to harsh engine environments, suitable for mounting in engine compartments or inside the vehicle. It includes sealed automotive and marine-grade connectors with Jetronic/Minitimer (Bosch type) injector harness connectors and comes with an NTK wideband oxygen sensor engineered for demanding applications.

Installation. Installation is straightforward with plug-and-play control designed specifically for GM LS1 and LS6 engines. The harness connects directly to factory sensors with minimal wiring required, making it accessible for both advanced enthusiasts and professional installers.

Application. This kit fits GM LS engines, particularly LS1 and LS6 models equipped with factory GM coils and 24 tooth crank sensors. It supports a wide range of LS engine sizes that meet this configuration, offering broad compatibility within the LS engine family.

Holley EFI 550-602N
