SKU
55-208355-1
Alt #:
608596

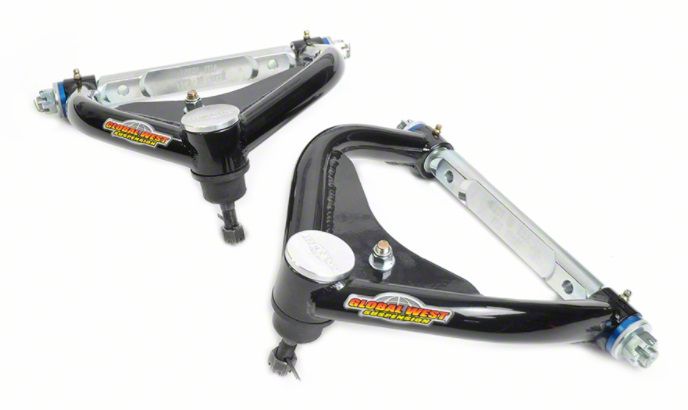

El Camino Upper Control Arm Assembly, With Negative Roll & Del-A-Lum Bushings, 1964-72

0% of 100
0  Reviews Add Your Review
Special Price $578.46 PR Regular Price $783.99 PR
Fitment
Chevelle, 1964 thru 1972 View More
Product Details
Improved Tire Life Through New Suspension Geometry Dr... View More
Availability: Out of stock
  • Improved Tire Life Through New Suspension Geometry
  • Dramatic Handling Gains
  • No Frame Modifications.
  • Will Not Interfere With Exhaust Or Steering Column
  • Uses Normal Alignment Shim Pack
  • Has Additional Caster Built Into The Upper Arms
  • Improved Camber Curve For Handling (True Negative Roll System)
  • Dedicated Offset Upper Control Arm Shafts Are Used
  • CNC Machined Components
  • Ball Joint Angles Are Corrected To Accommodate New Geometry
  • Round Tube Design Provides Superior Strength
  • Load Carrier Upper Ball Joints Offering Increased Strength Over Original Stock 4 Bolt
  • Allows 11", 12" Or 13"
  • Positive Bump Stop Eliminate Possible Over Travel Of Ball Joints
  • Jig Fitted & Heliarc Welded
  • Powder Coat Finish
  • Control Arm Are Shipped Preassembled With Del-A-Lum Bushings
  • Control Arms Have A Limited Manufactures Warranty
  • Must Be Used With Taller GM Spindle (Not Included)
These El Camino Del-a-lum tubular control arms achieve unequaled suspension control which can be utilized for street, strip or racing. These control arms must be used in conjunction with taller 8-15/16 GM spindles found on 1973-77 Chevelles and El Caminos to gain the benefits of proper caster settings. The Del-a-lum bushing found on these control arms performs more like a ball bearing than a bushing; the outer steel sleeve contains an internal plastic insert which rotates on a steel inner sleeve. Each side of the bushing is reinforced with additional plastic thrust washers backed by steel thrust washers which provides control of fore and aft bushing flexion. A grease fitting is utilized with each bushing to provide full-access lubrication which leads to longer bushing life. Del-a-lum bushings do not squeak or make noise making the fit and function superb for your restoration. When using Del-a-lum upper control arms and taller GM spindles, you instantly raise the caster alignment settings. You will obtain immediate gains in high speed stability, road feel and improved handling though corners. Also, improving the caster will extend tire life by keeping the tire contact patch parallel with the pavement rather than rolling over hard onto the sidewall of the tire during cornering which is an inherent defect of the original suspension design. Front ride height will drop approximately 1-inch because of the taller spindle and lower ball joint combination. This lowers the center of gravity and improves vehicle appearance without sacrificing suspension travel. You will also be pleased to know that The El Camino Store has sourced these control arm bushings among other possible parts as the best choice for your repair or restoration project. Trust The El Camino Store for all your reproduction and replacement needs!

1964-72 Upper Control Arm Assembly, With Negative Roll & Del-A-Lum Bushings

More Information
Alt. # 608596
Brand Global West Suspension
Availability Ships Direct From Manufacturer

Products from the same brand

Make / Model Series Body Notes Year
Make / Model Chevrolet Chevelle 300 Series Body Notes Chevelle 300, Coupe, Two Door Year 1968
Make / Model Chevrolet Chevelle 300 Series Body Notes Chevelle 300, Sedan, Four Door Year 1965, 1966, 1967
Make / Model Chevrolet Chevelle 300 Series Body Notes Chevelle 300, Sedan, Two Door Year 1965, 1966, 1967
Make / Model Chevrolet Chevelle 300 Series Body Notes Chevelle 300, Wagon, Four Door Year 1965
Make / Model Chevrolet Chevelle 300 Series Body Notes Chevelle 300, Wagon, Two Door Year 1965
Make / Model Chevrolet Chevelle 300 Deluxe Series Body Notes Chevelle 300 Deluxe, Coupe, Two Door Year 1968, 1969
Make / Model Chevrolet Chevelle 300 Deluxe Series Body Notes Chevelle 300 Deluxe, Sedan, Four Door Year 1965, 1966, 1967, 1968, 1969
Make / Model Chevrolet Chevelle 300 Deluxe Series Body Notes Chevelle 300 Deluxe, Sedan, Two Door Year 1965, 1966, 1967
Make / Model Chevrolet Chevelle 300 Deluxe Series Body Notes Chevelle 300 Deluxe, Sports Coupe, Two Door Year 1968, 1969
Make / Model Chevrolet Chevelle 300 Deluxe Series Body Notes Chevelle 300 Deluxe, Wagon, Two Door Year 1965, 1966, 1967
Make / Model Chevrolet Chevelle Concours Series Body Notes Concours Estate, Wagon, Four Door Year 1969, 1970, 1971, 1972
Make / Model Chevrolet Chevelle Concours Series Body Notes Concours, Wagon, Four Door Year 1967, 1968, 1969, 1970, 1971, 1972
Make / Model Chevrolet Chevelle Greenbrier Series Body Notes Greenbrier, Wagon, Four Door Year 1969, 1970, 1971, 1972
Make / Model Chevrolet Chevelle Malibu Series Body Notes Malibu, Convertible Year 1964, 1965, 1966, 1967, 1968, 1969, 1970, 1971, 1972
Make / Model Chevrolet Chevelle Malibu Series Body Notes Malibu, Coupe, Two Door Year 1964, 1965, 1966, 1967
Make / Model Chevrolet Chevelle Malibu Series Body Notes Malibu, Sedan, Four Door Year 1964, 1965, 1966, 1967, 1968, 1969, 1970, 1971, 1972
Make / Model Chevrolet Chevelle Malibu Series Body Notes Malibu, Sedan, Two Door Year 1968
Make / Model Chevrolet Chevelle Malibu Series Body Notes Malibu, Sports Coupe, Two Door Year 1968, 1969, 1970, 1971, 1972
Make / Model Chevrolet Chevelle Malibu Series Body Notes Malibu, Sports Sedan, Four Door Year 1967, 1968, 1969, 1970, 1971, 1972
Make / Model Chevrolet Chevelle Malibu Series Body Notes Malibu, Wagon, Four Door Year 1964, 1965, 1966, 1967, 1968
Make / Model Chevrolet Chevelle Malibu Series Body Notes Malibu, Wagon, Two Door Year 1965, 1966
Make / Model Chevrolet Chevelle Nomad Series Body Notes Custom Nomad, Wagon, Four Door Year 1968
Make / Model Chevrolet Chevelle Nomad Series Body Notes Nomad, Wagon, Four Door Year 1968, 1969, 1970, 1971, 1972
Make / Model Chevrolet Chevelle Ss Series Body Notes Chevelle, Super Sport (SS396) Convertible Year 1966, 1967, 1968
Make / Model Chevrolet Chevelle Ss Series Body Notes Chevelle, Super Sport (SS396) Coupe, Two Door Year 1966, 1967, 1968
Make / Model Chevrolet Chevelle Ss Series Body Notes Malibu, Super Sport (SS) Convertible Year 1964, 1965, 1966, 1967, 1968, 1969, 1970, 1971, 1972
Make / Model Chevrolet Chevelle Ss Series Body Notes Malibu, Super Sport (SS) Coupe, Two Door Year 1964, 1965, 1966, 1967, 1968, 1969, 1970, 1971, 1972
Make / Model Chevrolet Chevelle Standard Series Body Notes Chevelle, Sedan, Four Door Year 1964, 1965, 1966, 1967, 1968, 1969, 1970, 1971, 1972
Make / Model Chevrolet Chevelle Standard Series Body Notes Chevelle, Sedan, Two Door Year 1964
Make / Model Chevrolet Chevelle Standard Series Body Notes Chevelle, Sports Coupe, Two Door Year 1970, 1971, 1972
Make / Model Chevrolet Chevelle Standard Series Body Notes Chevelle, Wagon, Four Door Year 1964
Make / Model Chevrolet Chevelle Standard Series Body Notes Chevelle, Wagon, Two Door Year 1964
Make / Model Chevrolet El Camino Base Series Body Notes Year 1964, 1965, 1966, 1967, 1968, 1969, 1970, 1971, 1972
Make / Model Chevrolet El Camino Custom Series Body Notes Year 1968, 1969, 1970, 1971, 1972
Make / Model Chevrolet El Camino SS Series Body Notes Year 1968, 1969, 1970, 1971, 1972
