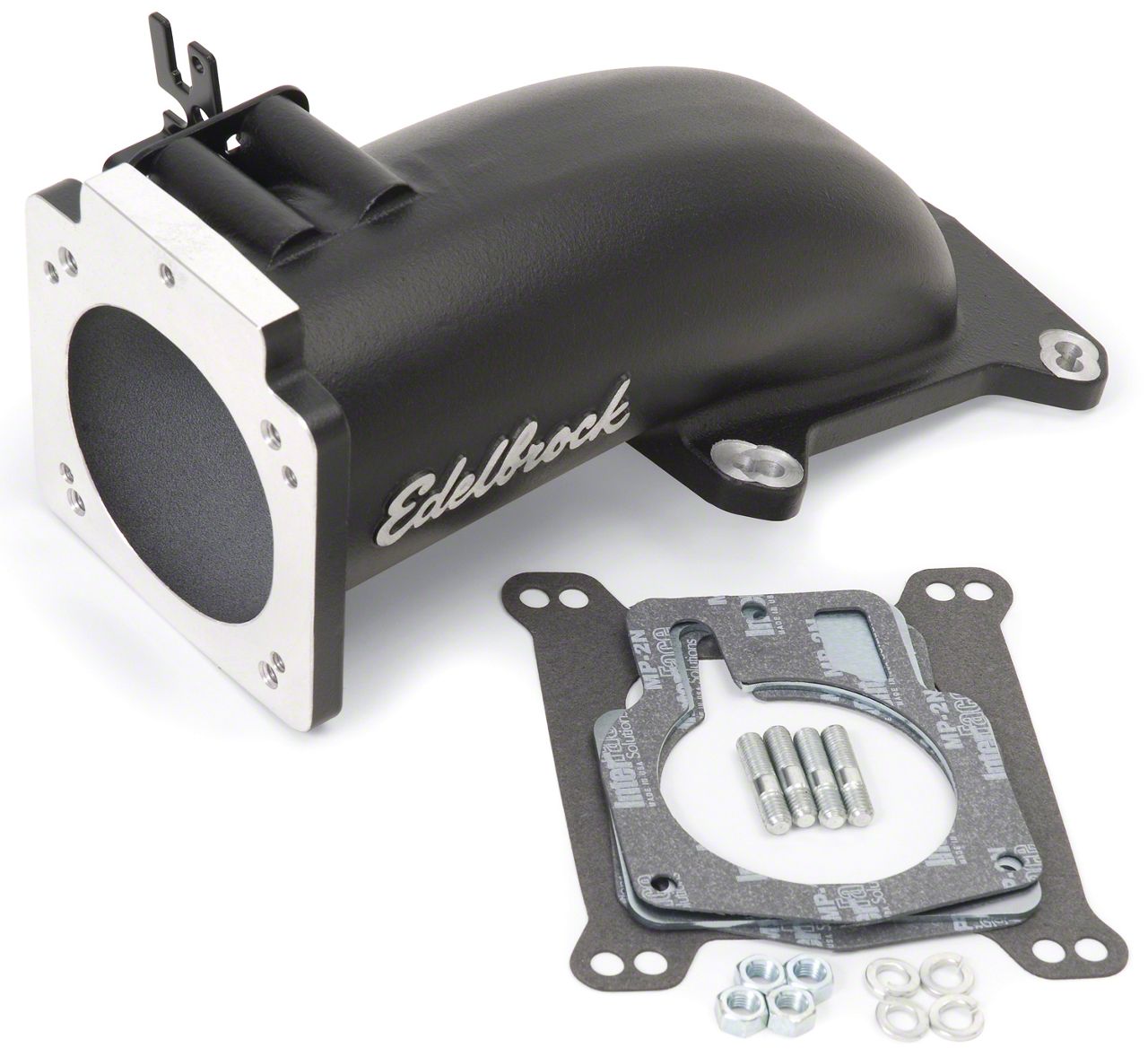

Edelbrock Edelbrock 38473 Ultra Low Profile Intake Elbow; 90Mm Throttle Body To Square-Bore Flange; Black

Name: Edelbrock Edelbrock 38473 Ultra Low Profile Intake Elbow; 90Mm Throttle Body To Square-Bore Flange; Black
Brand: Edelbrock
SKU: EK-55-454775-1

Item EK-55-454775-1

Eckler's no longer carries the Edelbrock Edelbrock 38473 Ultra Low Profile Intake Elbow; 90Mm Throttle Body To Square-Bore Flange; Black. Please check out El Camino/Caballero/Sprint Engine for an updated selection.

1 Reviews of Edelbrock

Shop Owners Save More! Sign up for our dealer program

Join For FREE

Product Information

Features, Description, Q&A

Features

Bore Centerline Height Is 0.56 Inches
Application Is Universal
Contains Eight Mounting Holes
Includes Gasket Or Seal
Sold Individually
Overall Height Measures 3.62 Inches
Type Is Ultra Low Profile
Not Compatible With E85 Fuel
Not Compatible With Oxygenated Fuel
Main Port Inside Diameter Is 90.0 Millimeters
Mounting Hole Inside Diameter Is 0.344 Inches
Main Port Outside Diameter Is 90.0 Millimeters
Product Length Is 9.0 Inches
Material Is Aluminum
Contains One Port
Thickness Is 0.440 Inches

Description

Throttle Body Adapter. The Edelbrock 38473 Ultra Low Profile Intake Elbow; 90mm Throttle Body To Square-Bore Flange; Black is designed to connect throttle bodies to square-bore, 4150 style intake manifolds. This elbow optimizes airflow by fitting low-profile applications where clearance is limited while allowing flexible mounting orientations including forward, backward, or sideways. Its design improves fitment possibilities on a variety of intake setups with space constraints.

Construction and Appearance. Crafted from precision-machined aluminum, the elbow is finished with a durable black powder coating that enhances corrosion resistance and provides a sleek, matte black appearance suitable for engine bays requiring a low-profile black component. The build assures strength while minimizing weight for performance applications.

Installation. Installation is straightforward with no need for drilling additional holes due to its 8-hole bolt pattern that matches standard throttle bodies and intake flanges. Its versatile mounting angles allow adaptation to existing engine configurations with minimal modifications.

Warranty. This product includes a 12-month warranty covering manufacturing defects and ensuring quality assurance.
