Radio, Reproduction (1966 Chevelle; 1966 Malibu)Find parts that fit my vehicle

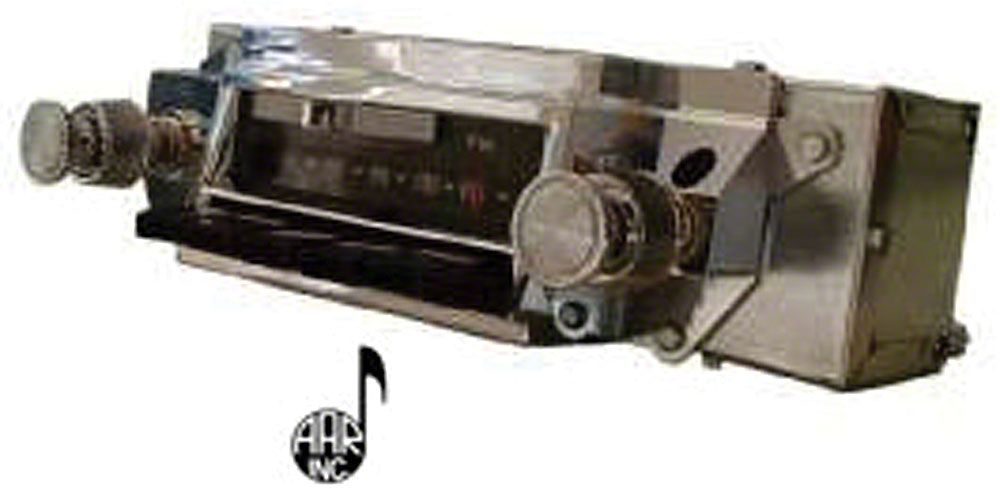

Name: Radio, Reproduction (1966 Chevelle; 1966 Malibu)
Brand: Store Brand
SKU: EK-50-289680-1
Price: 1024.99 USD
Availability: InStock

Item EK-50-289680-1

4 Reviews of similar

Our Price

-0% $1,024.99 Was $1,024.99

Military, Medical & First Responders $51.25 Available in EK Cash Rewards.
Confirm Eligibility

Add to Cart

Save for later

Create a list

Name your new list Add to New List

Saved - View your saved items

We're sorry. We couldn't save this product at this time.

or use

Shop Owners Save More! Sign up for our dealer program

Join For FREE

Product Information

Features, Description, Q&A

Features

Rare AM/FM Factory Option
Designed to Look, Fit, and Feel Just Like the Original
Radio Case Only 4.5” Deep Allowing Room for Air Conditioning and Other Options
AM/FM ‘Roll Over’ Type Dial Looks and Works Exactly Like the Original
AM/FM Band Selected Using the Slide Bar
No Digital Display
Dial Pointer, Knobs, and Pushbuttons All Move and Work Like the Original When Powered On
Equipped with Bluetooth® for Wireless Audio Streaming and Hands-Free Phone Control
3.5mm Auxiliary Port for Compatible Devices Such as MP3, CD, Cassette, or Updated 8 Track Players
Additional Input Jack for Foot Control Switch
Includes 12 ½” 12-Wire Harness with Male and Female Connections for Easy Installation
Harness Includes Power, Ground, 12-Volt Output, 4 Speaker Connections, and Dial Lights
Four Channel RCA Outputs for External Amplifier and One Subwoofer RCA Output
Radio Case Dimensions: 2.5” H, 8.25” W, 4.5” D
High-Quality Chrome Plated Die-Cast Nose Piece Matches Original
Chrome-Plated Die-Cast Knobs and Backrings Included
Black Plastic Pushbuttons Match and Function Like Originals
Programmable AM/FM Channel Spacing for North America or Europe
Digitally Tuned AM/FM Stereo Receiver with Stable High-Quality Reception
Sensitivity: FM S/N 30dB Typical 5dBµ, AM S/N 20dB Typical 29dBµ
Bluetooth® 5.0 with Built-In Microphone and Support for HFP, HSP, A2DP, AVRCP Profiles
Bluetooth® Mode Includes Programmable Audio Equalizer
Compatible with XM Radio via Auxiliary Input
Radio Output: 180 Watts RMS (45W x 4 at 4 Ohms, 14.4V, 1kHz)
Protective Circuit to Prevent Damage from Grounded or Faulty Speaker Wires
Recommended Speakers: 40+ Watts RMS, 4 Ohms, SPL 88+
Four Low-Level Outputs Plus One Subwoofer Output on Back
Operates on 11.5-16 Volts DC, Negative Ground
Same Size and Threaded Shafts as Original Controls; Mounting Hardware Included
Controls Include On/Off, Volume, Tone, Tuning, Balance, Hidden Fader with Analog Feel
Pushbuttons Save 5 FM and 5 AM Preset Stations and Control Bluetooth® Functions
Memory Retention for Presets and Settings Without Constant Power
Warm White LED Dial Lights
Standard Motorola Antenna Jack on Back
9” Mounting Backstrap Included
Fits 1966 Chevelle and 1966 Malibu Models

Description

Authentic Radio Reproduction. The Radio, Reproduction, 1966 Chevelle AM/FM/Bluetooth radio combines classic design with modern technology to upgrade your vehicle’s audio system. It functions as an AM/FM stereo receiver with original analog-style controls while incorporating Bluetooth wireless streaming and hands-free phone capabilities. This blend maintains vintage style while enhancing usability for today’s audio needs.

Construction and Appearance. Featuring a high-quality chrome-plated die-cast nose piece, knobs, and backrings, the radio replicates the original appearance precisely. The black plastic pushbuttons fully match and function like the factory-installed unit. Its compact 4.5" deep case allows for installation without interfering with dashboard components like air conditioning, and warm white LED dial lights replicate authentic dial illumination.

Installation. Installation is straightforward with no modifications or drilling required, as the radio fits perfectly into the original factory dash opening. A 12 ½” 12-wire harness with plug-and-play connectors simplifies wiring, ensuring a secure and professional setup.

Warranty. This product comes with a manufacturer-provided warranty that covers defects and performance issues for a specific period.

Application. Designed to fit 1966 Chevelle and 1966 Malibu models precisely, this radio requires no alterations and preserves the authenticity of these classic vehicles.
