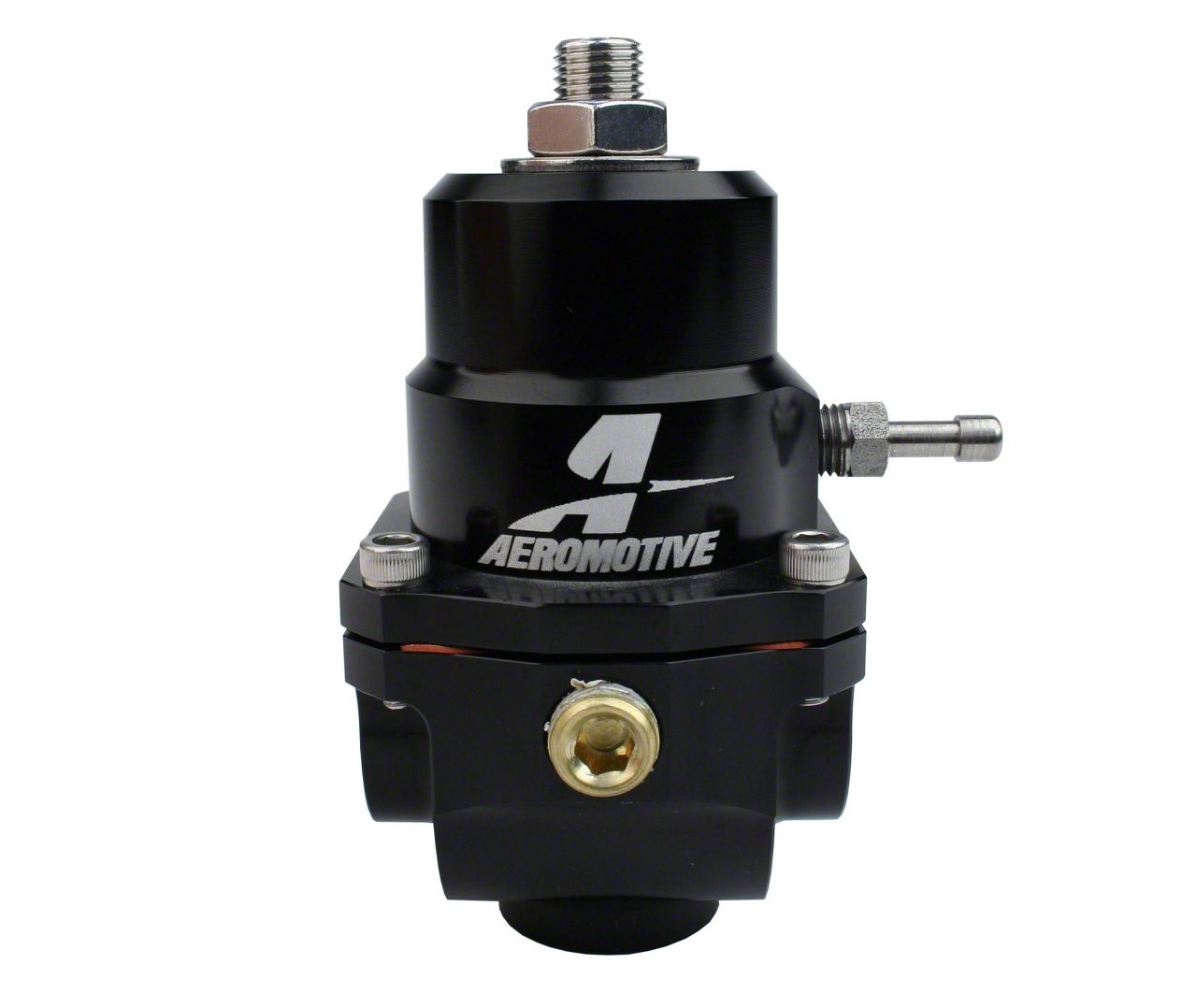

Aeromotive Carburetor Bypass Fuel Regulator, X1 Series, Aeromotive (59-87 El Camino; 71-77 Sprint; 78-87 Caballero)

Item EK-55-854581-1
Product Image
15 Reviews of Aeromotive
Our Price

$344.22

Military, Medical & First Responders $17.25 Available in EK Cash Rewards.
Confirm Eligibility

Add to Cart
Save for later
    Create a list
    Add to New List

    Saved - View your saved items

    We're sorry. We couldn't save this product at this time.

    or use

    Shop Owners Save More! Sign up for our dealer program
    Join For FREE
    Loading Indicator

      Product Information

      Features, Description, Q&A

      Features

        _x000D_
      • Carbureted Return Style Regulator For Return Style Systems
        • _x000D_
      • Base Fuel Pressure Adjustable From 3-20 PSI
        • _x000D_
      • Vacuum/Boost Reference Capability
        • _x000D_
      • 1:1 Rising Rate For Blow-Through Carburetors
        • _x000D_
      • Gasoline, Ethanol, Alcohol And Diesel Compatible
        • _x000D_
      • 2 ORB-08 Inlet/Outlet Ports On The Sides
        • _x000D_
      • 1 ORB-08 Return Port On The Bottom Port
        • _x000D_
      • 1/8" NPT Gauge Port With Plug
        • _x000D_
      • 1/16" NPT Boost Port With 5/32" Hose Barb
        • _x000D_
      • Compatible With Both X1 EFI Conversion Kits
        • _x000D_
      • 0.313" Return Style With Matching Spring And Poppet
        • _x000D_
      • Handles Up To 150 GPH With AN-08 Return Line
        • _x000D_
      • Suitable For Any Aeromotive Pump Up To A1000
        • _x000D_
      • Mounting Bracket Included
        • _x000D_
      • This Product Is Not Legal For Sale Or Use On Emission-Controlled Vehicles Except When Used As A Direct Replacement Part Matching OEM Specifications
        • _x000D_
      • Fits 59-87 El Camino; 71-77 Sprint; 78-87 Caballero
        • _x000D_

      Description

      Advanced Fuel Regulation. The Aeromotive Carburetor Bypass Fuel Regulator, X1 Series, is designed to control fuel pressure in return style systems with an adjustable base pressure range from 3 to 20 PSI. It supports vacuum and boost reference, providing precise fuel flow adjustments crucial for performance applications, especially with blow-through carburetors.

      _x000D__x000D_

      Construction and Appearance. Crafted from high-quality materials, the regulator features 2 ORB-08 female inlet/outlet ports, a 1 ORB-08 return port on the bottom, and a 1/8" NPT gauge port with plug. It is finished in black and includes a robust mounting bracket. The internal diaphragm, poppet, and spring are optimized for superior performance and reliability across a variety of fuel types including gasoline, ethanol, alcohol, and diesel.

      _x000D__x000D_

      Installation. Installation is straightforward with the included mounting bracket; no drilling is typically required. It is designed for direct integration into existing fuel systems compatible with Aeromotive pumps up to the A1000 model.

      _x000D__x000D_

      Warranty. This product comes with a one-year limited warranty against defects in material and workmanship.

      _x000D__x000D_

      Application. Specifically fits 59-87 El Camino, 71-77 Sprint, and 78-87 Caballero models. It is not legal for sale or use on emission-controlled vehicles except when used as a direct replacement part matching OEM specifications.

      Aeromotive 13304
