Edelbrock 800 CFM AVS2 Edelbrock Carburetor Thunder Series (62-68 Chevy II; 69-79 Nova)Find parts that fit my vehicle

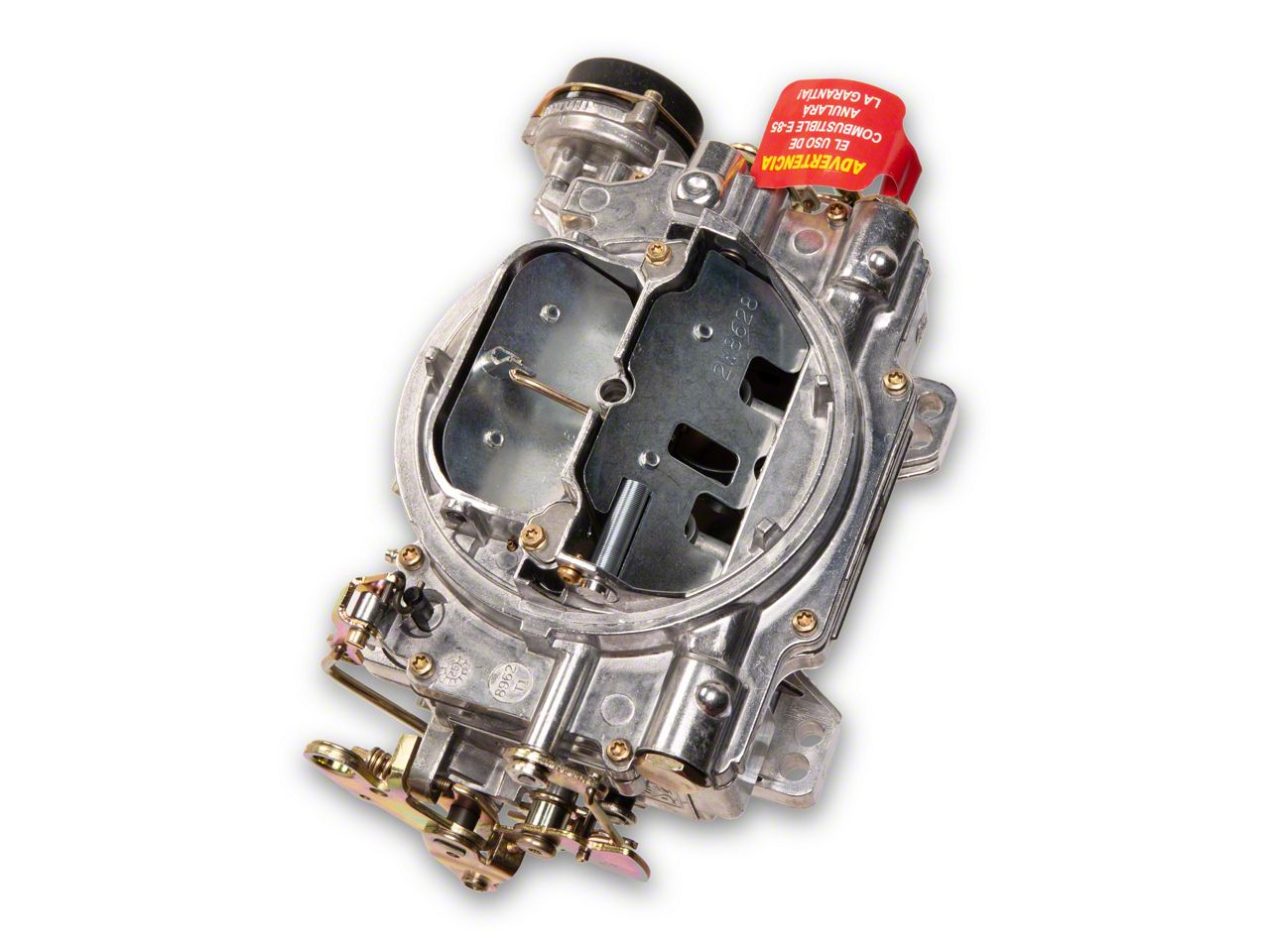

Name: Edelbrock 800 CFM AVS2 Edelbrock Carburetor Thunder Series (62-68 Chevy II; 69-79 Nova)
Brand: Edelbrock
SKU: EK-85-852234-1
Price: 626.95 USD
Availability: InStock

Item EK-85-852234-1

6 Reviews of Edelbrock

Our Price

-0% $626.95 Was $626.95

Military, Medical & First Responders $31.35 Available in EK Cash Rewards.
Confirm Eligibility

Add to Cart

Save for later

Create a list

Name your new list Add to New List

Saved - View your saved items

We're sorry. We couldn't save this product at this time.

or use

Shop Owners Save More! Sign up for our dealer program

Join For FREE

Product Information

Features, Description, Q&A, Specs & Installation

Features

Annular Flow Booster Technology Brings Superior Fuel Atomization To All High-Horsepower Small- And Big-Block Engines
Specially Calibrated To Make Power
Delivers Near EFI-Like Drivability By Refining Fuel Distribution With Eight Equally Spaced Orifices In Booster Rings
Completely Eliminates Flat Spots And Improves Throttle Response In Low- To Mid-RPM Range Without Sacrificing Top-End Power
Unaffected By Engine Backfires Due To Lack Of Power Valves
Fast, Simple Part-Throttle Tuning With Metering Rods And Springs That Can Be Changed Without Carburetor Removal Or Fuel Draining
Unique Ability To Hold A Tune Compared To Other Carburetors
Updated Primary And Secondary Booster Clusters For Accurate Calibration With Today's Fuels And Octane Levels
Qwik-Tune Secondary Air Valve Allows Limitless Calibration Of Secondary Circuit With Simple Hand Tools
Two-Piece Ease-Of-Tuning Design Allows Float Level Adjustments Or Replacement Of Internal Components Without Draining Fuel Or Removing Carburetor
Available With Manual Or Electric Choke In Satin Or Chrome-Like EnduraShine Finish
Designed, Manufactured, Assembled And Calibrated In The USA
Cfm Rating Of 800
Material Constructed From Aluminum
Four Barrel Design With Square Flange Type
Primary And Secondary Bore Diameter 1.75 Inches
Main Venturi Diameter 1.525 Inches
Secondary Venturi Diameter 1.630 Inches
Metering Rod Size .065 X .052 Inch
Metering Rod Length 65 Inches
Spring Force 5" Hg (Orange)
Secondary Jet Diameter 0.104 Inch
Primary Jet Diameter 0.104 Inch
Includes Gasket Or Seal
Mounting Hole Quantity 8 With Diameter 0.355 Inch
Street Legal Status No
Installation Requires New Fuel Filter Between Fuel Pump And Carburetor To Maintain Warranty
Not Calibrated For Alcohol, Race, Or E85 Pump Fuel; Use Of Such Fuels Will Damage Carburetor And Void Warranty
Edelbrock AVS2 Carbs Compatible With Ford Automatic Overdrive Trans (AOD) When Used With Lokar Bracket SRK-4000
Fits 62-68 Chevy II; 69-79 Nova

Description

Performance Fuel Atomization. The Edelbrock 800 CFM AVS2 Carburetor Thunder Series is engineered to enhance power output and drivability in high-performance small- and big-block engines. It optimizes fuel atomization and throttle response to provide a smooth, EFI-like driving experience. This carburetor is ideal for users seeking enhanced street performance along with reliable, simple part-throttle tuning.

Construction and Appearance. Crafted from durable aluminum, this carburetor features a satin finish that resists corrosion while providing an attractive appearance. It incorporates advanced annular flow booster technology and precision-engineered booster clusters calibrated for modern fuels, ensuring efficient performance and durability.

Installation. Installation is straightforward with a two-piece design that allows float level and internal adjustments without removing the unit or draining fuel. A new fuel filter must be installed between the fuel pump and carburetor to comply with warranty requirements.

Warranty. This carburetor includes a 12-month warranty against defects in materials and workmanship.

Application. Designed to fit 62-68 Chevy II and 69-79 Nova models, this carburetor delivers improved performance tailored to these vehicles.
