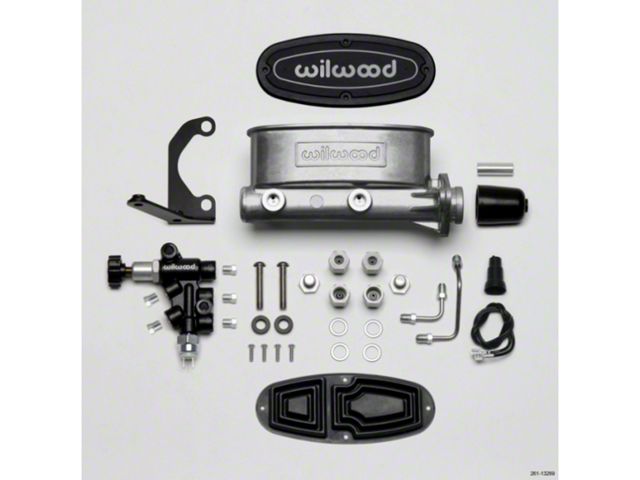

Wilwood Master Cylinder Kit, Bare Aluminum Tandem, with Bracket & Valve, 1.0 Bore (62-68 Chevy II; 69-75 Nova)

Item EK-85-382712-1
3 Reviews of Wilwood
Our Price

$395.23

Military, Medical & First Responders $19.76 Available in Eckler's Cash Rewards.
Confirm Eligibility

Add to Cart
Save for later
    Create a list
    Add to New List

    Saved - View your saved items

    We're sorry. We couldn't save this product at this time.

    or use

    Shop Owners Save More! Sign up for our dealer program
    Join For FREE

      Product Information

      Features, Description, Q&A

      Features

        _x000D_
      • Aluminum Tandem Chamber Master Cylinder Kit With Bracket And Valve
        • _x000D_
      • Bore Size 1.00 Inches
        • _x000D_
      • Master Cylinder Area 0.780 Square Inches
        • _x000D_
      • Stroke Length 1.10 Inches
        • _x000D_
      • Tandem Outlet Master Cylinder Type
        • _x000D_
      • Two Outlets
        • _x000D_
      • Aluminum Material
        • _x000D_
      • Bare Finish
        • _x000D_
      • Integral Reservoir Type
        • _x000D_
      • Reservoir Size 8.0 And 4.8 Ounces
        • _x000D_
      • Reservoir Size 14.4 And 8.7 Cubic Inches
        • _x000D_
      • Outlet Size One Half Inch - 20 Thread
        • _x000D_
      • Outlet Fit One 3/8-24 Internal Fitting Or 1/2-20 Internal Fitting
        • _x000D_
      • Outlet Size Two One Half Inch - 20 Thread
        • _x000D_
      • Outlet Fit Two 3/8-24 Internal Fitting Or 9/16-18 Internal Fitting
        • _x000D_
      • Overall Length 8.76 Inches
        • _x000D_
      • Flange To End Length 8.15 Inches
        • _x000D_
      • Includes Combination Proportioning Valve, Fluid Tubes, And Mounting Hardware
        • _x000D_
      • Slotted Flange Mounting Compatible With Chrysler, Corvette, GM, And Ford Mustang Bolt Patterns
        • _x000D_
      • Fits 62-68 Chevy II; 69-75 Nova
        • _x000D_

      Description

      Premium Master Cylinder Kit. The Wilwood Master Cylinder Kit, Bare Aluminum Tandem, with Bracket & Valve, 1.0 Bore is designed to provide precise brake pressure actuation and fluid control for manual or power brake systems. This kit integrates a tandem master cylinder with a combination proportioning valve, simplifying brake system installation and adjustment for enhanced braking performance.

      _x000D__x000D_

      Construction and Appearance. The master cylinder is constructed from aluminum for lightweight strength and features a durable bare finish. It includes an integral reservoir made of quality materials with a two-chamber design, and the combination valve and bracket feature a black E-coat finish for corrosion resistance and visual appeal. Stainless steel fluid tubes and plated steel tube nuts ensure reliable, rust-free connections.

      _x000D__x000D_

      Installation. Installation is straightforward with a slotted flange that fits common OE mounts including Chrysler, Corvette, GM, and Ford Mustang patterns, requiring no custom drilling. The included hardware and fluid lines make for a simple bolt-on setup, allowing for quick connection and easy system bleeding.

      _x000D__x000D_

      Application. Specifically designed to fit 62-68 Chevy II and 69-75 Nova models, ensuring compatibility with these classic vehicles without modifications.
