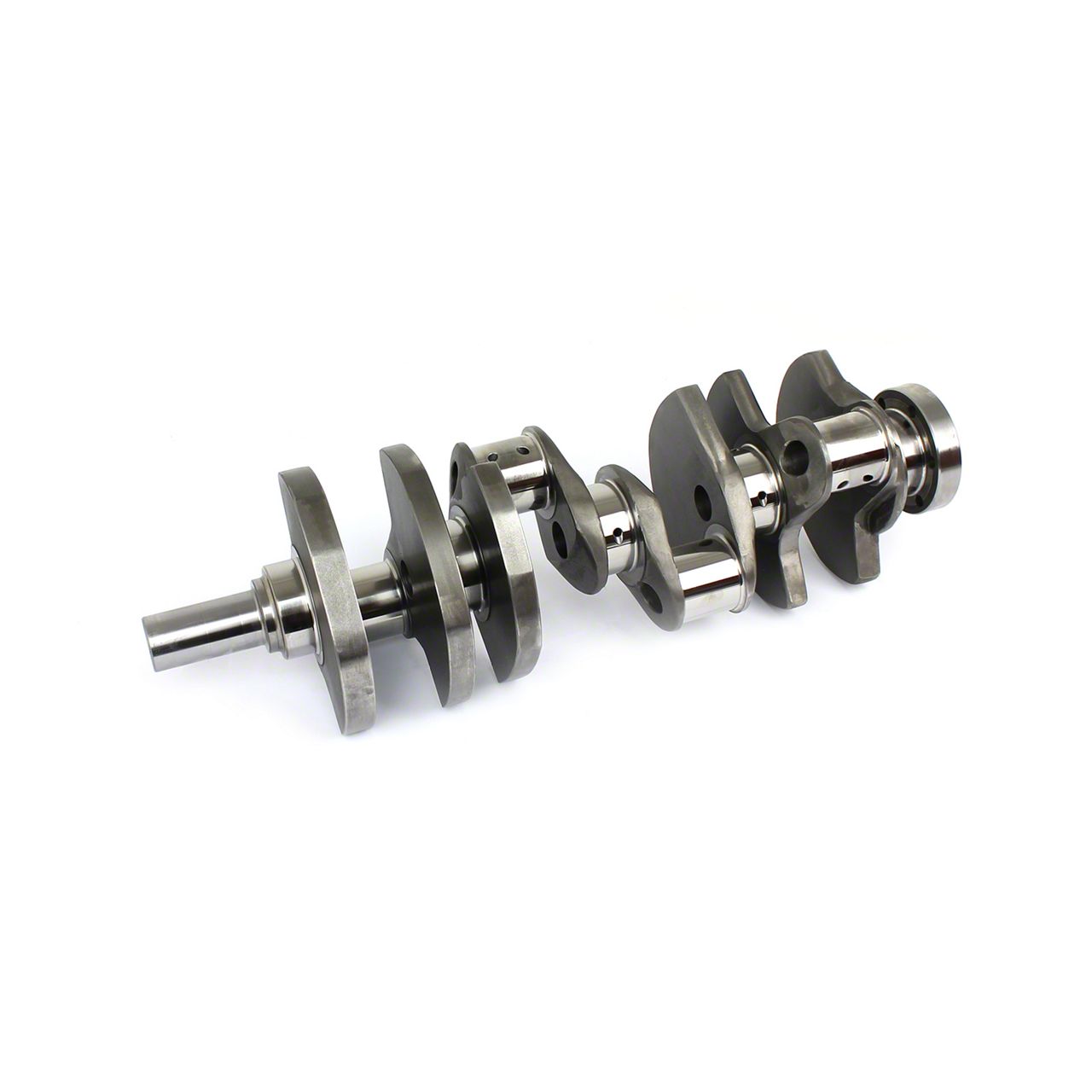

Speedmaster GM LS 4340 Forged Crankshaft; 4.000-Inch Stroke
Item U58870-EK
New
Our Price
$1,198.10
Military, Medical & First Responders
$59.91 Available in Eckler's Cash Rewards.
Confirm Eligibility
Confirm Eligibility
Choose options to add to cart.
Saved - View your saved items
We're sorry. We couldn't save this product at this time.
or use
Shop Owners Save More!
Sign up for our dealer program
Product Information
Description, Q&A
Description
Specs
Brand: Speedmaster
Part Number: PCE276.1060
Part Type: Crankshaft
Product Line: 4340 Forged Steel
Rear Main Seal Style: 1-piece
Engine Stroke (in): 4.000 in.
Crankshaft Material: Forged 4340 Steel
Engine Balance: Internal
Lightened: No
Requires Narrow Bearings: See notes below
Rod Bearings Included: No
Main Bearings Included: No
Rod Journal Diameter (in): 2.100 in.
Main Journal Diameter (in): LS Standard
Minimun Rod Length (in): 6.098 in.
Balancer Bolt Thread Size: Standard
Crankshaft Snout Style: Standard
Quantity: Sold individually.
Notes: Check the bearing to crank radius clearance. Rod bearings may need to be chamfered or alternatively use narrow rod bearings.
Tool: Stroker Combinations
Description
Speedmaster forged standard weight crankshafts are designed for street or race engines with substantially increased horsepower. Speedmaster crankshafts are precision-ground, heat-treated, shot-peened, inspected, and micro-polished for superior tolerance control. Speedmaster crankshafts are also nitride-hardened for superior wear resistance, have straight-shot and chamfered oil holes, and feature lightening holes in all rod throws. These crankshafts also have a large radius on all journals for improved strength and wear resistance.
Brand: Speedmaster
Part Number: PCE276.1060
Part Type: Crankshaft
Product Line: 4340 Forged Steel
Rear Main Seal Style: 1-piece
Engine Stroke (in): 4.000 in.
Crankshaft Material: Forged 4340 Steel
Engine Balance: Internal
Lightened: No
Requires Narrow Bearings: See notes below
Rod Bearings Included: No
Main Bearings Included: No
Rod Journal Diameter (in): 2.100 in.
Main Journal Diameter (in): LS Standard
Minimun Rod Length (in): 6.098 in.
Balancer Bolt Thread Size: Standard
Crankshaft Snout Style: Standard
Quantity: Sold individually.
Notes: Check the bearing to crank radius clearance. Rod bearings may need to be chamfered or alternatively use narrow rod bearings.
Tool: Stroker Combinations
Description
Speedmaster forged standard weight crankshafts are designed for street or race engines with substantially increased horsepower. Speedmaster crankshafts are precision-ground, heat-treated, shot-peened, inspected, and micro-polished for superior tolerance control. Speedmaster crankshafts are also nitride-hardened for superior wear resistance, have straight-shot and chamfered oil holes, and feature lightening holes in all rod throws. These crankshafts also have a large radius on all journals for improved strength and wear resistance.
