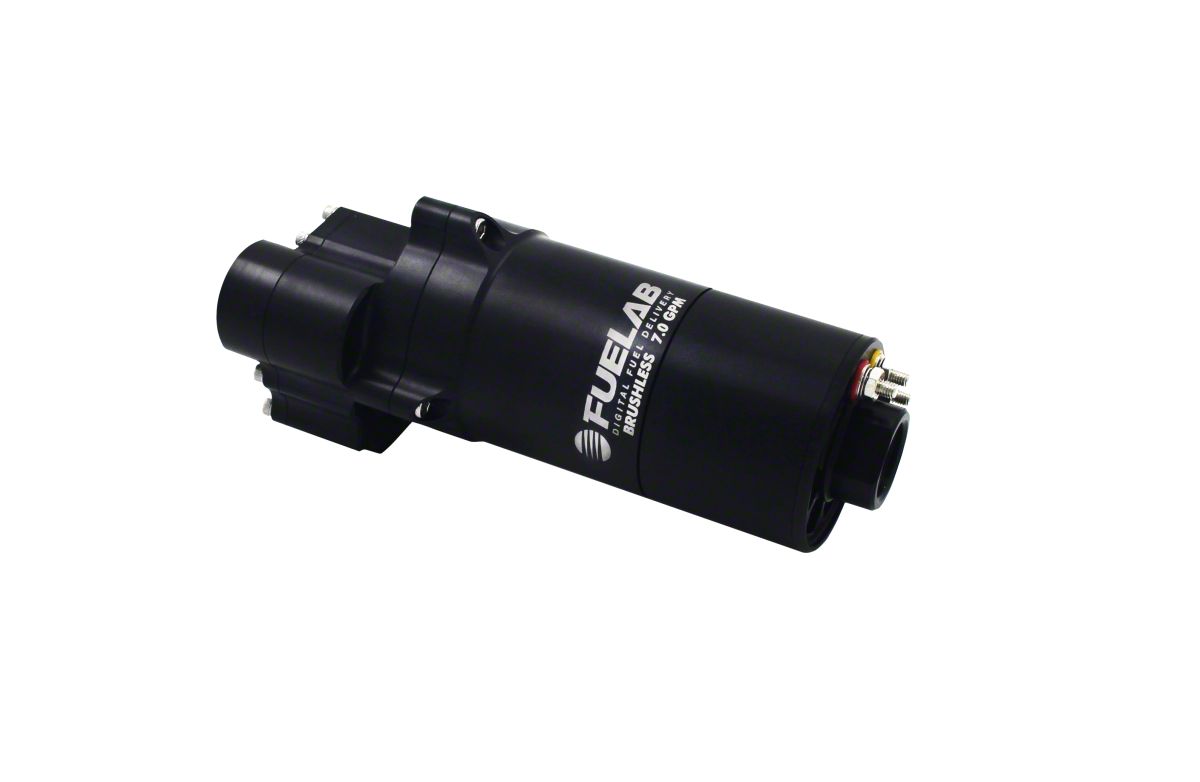

Fuelab PRO Series Extreme Flow Spur Gear Brushless Fuel Pump; 7 GPM (Universal; Some Adaptation May Be Required)

7.0 GPM @ 45PSI, 100 PSI MAX - Rated up to 4800+HP - Power and efficiency at it's best!
NEW FOR 2025
ATTENTION: THE 40502 PRO SERIES FUEL PUMPS MUST BE USED WITH REGULATORS WITH A RETURN CAPACITY OF 10 GAL/MIN OR MORE !!! FUELAB 565XX SERIES RECOMMENDED.

Pump Features
Compatible with gasoline, diesel, ethanol and methanol
High precision spur gear pumping mechanism
-12AN Inlet and -10AN outlet Ports
Backed by a limited lifetime warranty

Motor Features
Lightweight super-efficient DC brushless motor reduces current draw
Low mass rotor for high speed reaction to changes in speed and flow
Powerful high flux Neodymium rare earth magnets
No motor brushes to wear out or corrode (low-Sulfur diesel, no problem)
Wet motor design, no dynamic shaft seals that can wear out

Electronic Features
Internal Speed Controller for Variable flow operation
12 to 24 volt vehicle electrical system compatibility
Accepts PWM input for speed control
No expensive add-on voltage regulators or pump controllers required!
Continuous duty - motor speed can be adjusted to meet fuel demand

Construction Features
Compact, powerful and lightweight - 3.5lbs, overall length 7.7", diameter 3.31"
Billet Aluminum construction with Anodize per MIL-A-8625, Type II
High quality T-Style Mounting Brackets included
Long Life multi-fuel compatible Fluorosilicone static seals

Available in MATTE BLACK ONLY
