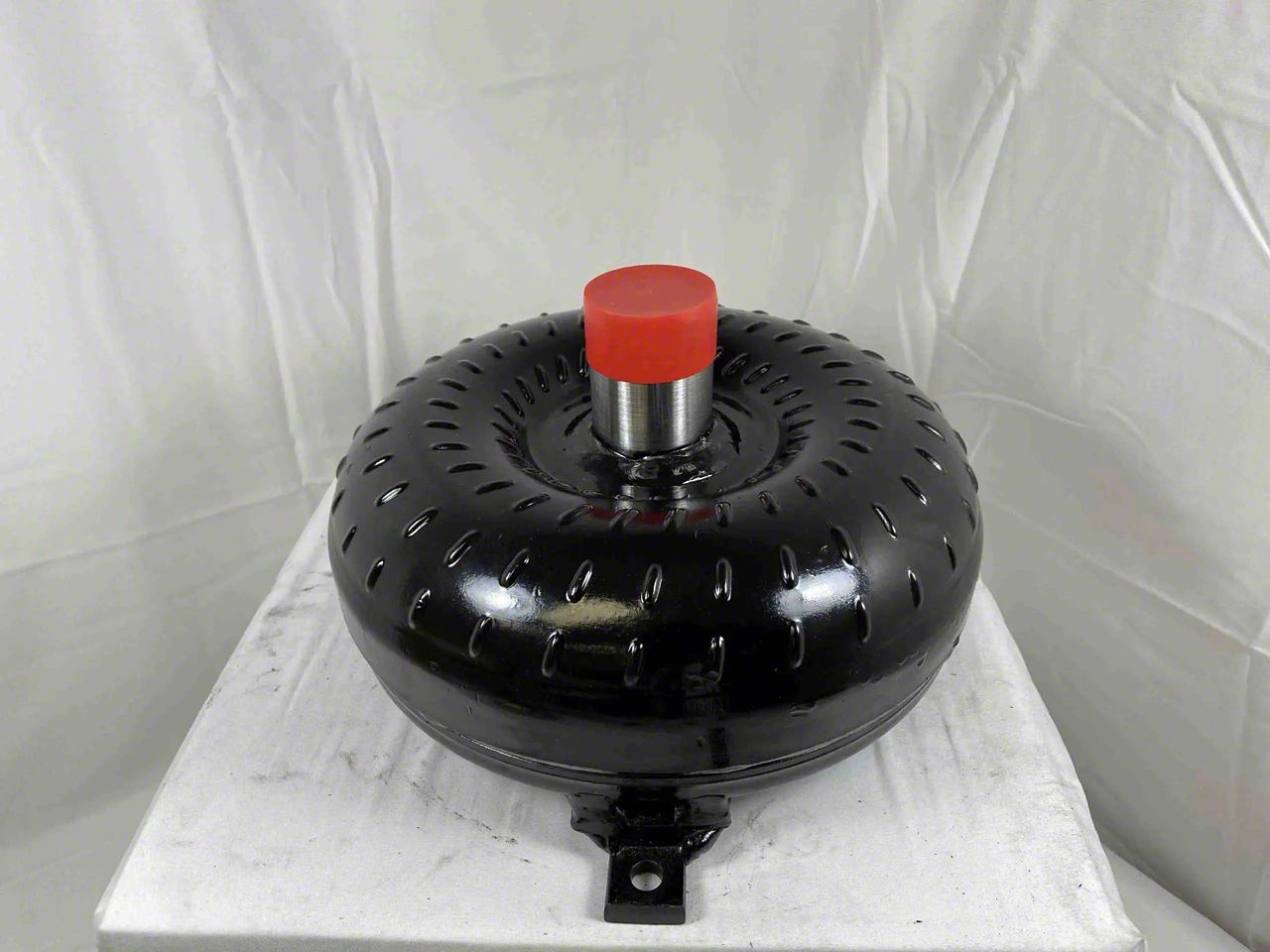

Boss Hog TH-350C Street Bandit Series 298mm Super Light Lock-Up Converter; 30-Spline; 3600-4000 RPM Stall
Item U69955-EK
New
Our Price
$640.24
Military, Medical & First Responders
$32.01 Available in EK Cash Rewards.
Confirm Eligibility
Confirm Eligibility
Choose options to add to cart.
Saved - View your saved items
We're sorry. We couldn't save this product at this time.
or use
Shop Owners Save More!
Sign up for our dealer program
Product Information
Features, Description, Q&A
Features
- GM
- Chevy
- TH350C
- 298mm
- Lock Up
- Street Bandit Series
- 298mm For LT Type Engines
- For The 3 Step Input Shaft
- Super Lightweight Lock Up Converter
- Stall Range 3,500 – 4,200 RPM
- 9.6 Inch Core
- Bolt Circle 10.75 Inches
- 30 Spline Input Shaft
- Hardened Chrome Moly Hub
- Torrington Style Incased Bearings
- Modified Heavy Duty Stator
- Extreme Duty Lock Up
- Deleted Need For End Of Input Shaft O-Ring
- Lock Up Sealed On Back Side Of Turbine Hub
- 1.703 Inch Crank Pilot Precision CNC Machined
- Bolt Size 3/8 X 16 TPI Grade 8 Only
- No Anti-Balloon Plates
- Four Corner Tac Welded Fins Or Furnish Brazed
- Quality Inspections Throughout Every Step
- For Choppy Cams And Lightweight Vehicles
- Leak And Pressure Tested
- Digitally Balanced
- Tip Use Old School Type F Transmission Fluid For Best Results
- Tip Always Use An Additional Transmission Cooler
- Tip Use Blue Loctite
Description
High Performance Lock-Up. The Boss Hog TH-350C Street Bandit Series 298mm Super Lightweight Lock-Up Converter with a 30-spline input shaft and 3,500–4,200 RPM stall range is engineered to deliver superior torque converter performance for GM Chevy transmissions. It improves power transfer by reducing rotational mass and reinforcing weak points such as the stator and lock-up liner, making it ideal for high-performance street and racing applications.
Construction and Appearance. Crafted with a hardened chrome moly hub and Torrington style incased bearings, this converter features a modified heavy-duty stator and extreme-duty lock-up liner. The unit is precision CNC machined with a 1.703 inch crank pilot and finished with digitally balanced components for reliability and durability. Four-corner tac welded or brazed fins provide added strength and structural integrity.
Installation. The converter installs using standard hardware with 3/8 x 16 TPI grade 8 bolts. The design eliminates the need for the input shaft O-ring, simplifying installation and improving reliability. No drilling or special modifications are required.
Boss Hog 47405
