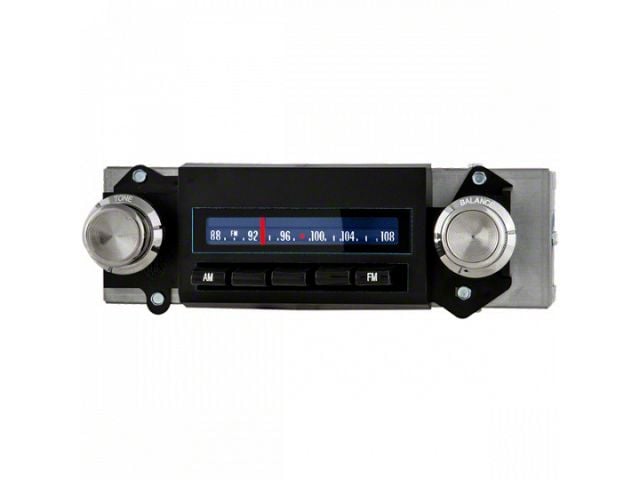

AM/FM Bluetooth Radio (69-72 GTO)Find parts that fit my vehicle
Item EK-71-876363-1
Our Price
$1,024.99
Military, Medical & First Responders
$51.25 Available in EK Cash Rewards.
Confirm Eligibility
Confirm Eligibility
Saved - View your saved items
We're sorry. We couldn't save this product at this time.
or use
Shop Owners Save More!
Sign up for our dealer program
Product Information
Features, Description, Q&A
Features
- Fits The Original 1969-72 GTO & Tempest Dashes With No Modifications Necessary
- Radio Case Dimensions: 2.5” High, 8.25” Wide, 3.5” Deep Behind The Dash
- Chrome-Plated Plastic Knobs And Backrings Included And Match The Original
- Black Plastic Pushbuttons With ‘AM’ And ‘FM’ Buttons
- AM Or FM Band Selected With The Pushbuttons
- The Rollover Dial Looks And Functions Like The Original
- Red Dot Stereo Indicator Included
- AM/FM Radio With Programmable Options For North American Or European Channel Spacing
- Digitally Tuned AM/FM Stereo Receiver Provides Stable, High-Quality Reception While Keeping The Original Analog Display
- Typical Sensitivity: FM S/N 30dB At 5 dBµ, AM S/N 20dB At 29 dBµ
- Bluetooth 5.0 With Built-In Microphone For Hands-Free Phone Control
- Supports HFP, HSP, A2DP, And AVRCP Bluetooth Profiles
- Bluetooth Mode Offers Programmable Audio Equalizer While Streaming Music
- 3.5mm Auxiliary Input Jack For Compatible Devices Like MP3, CD, Or Updated Cassette/8 Track Players
- Compatible With XM Radio Receivers Using The Auxiliary Input (Receiver Not Included)
- Additional Input Jack For Use With Optional Foot Control Switch
- Output Power: 180 Watts RMS (45 Watts per Channel, 4 Channels, 4 Ohms, 14.4 Volts, 1 kHz)
- Protective Circuit Against Grounded Or Faulty Speakers
- Speaker Recommendations: 40+ Watts RMS Rating, 4 Ohms, SPL 88+ dB
- Four Low-Level RCA Outputs Plus Subwoofer Output For External Amplifiers
- Operates On 11.5-16 Volts DC, Negative Ground Only
- Controls Use Original Size And Threaded Shafts; Mounting Hardware Included
- Analog Controls Include On/Off, Volume, Tone, Tuning, Balance, And Hidden Fader
- Pushbuttons Save Four FM And Four AM Preset Stations
- Pushbuttons Operate Bluetooth Functions Such As Play/Pause, Answer/Hold, And Equalizer
- Memory Retention For Presets And Settings Without Constant Power
- Warm White LED Dial Lighting To Match Original Appearance
- Standard Motorola Antenna Jack On Rear
- Includes Nine Inch Mounting Backstrap
- Fits 69-72 GTO & Tempest Models
Description
Classic Bluetooth Radio. The 1969-1972 GTO / Tempest AM/FM Bluetooth Radio is designed to replicate the original radio’s look and functionality while incorporating modern features. It allows users to enjoy AM/FM radio alongside wireless audio streaming and hands-free phone control, combining vintage style with modern convenience.
Construction and Appearance. This radio features a compact, 3.5-inch deep case to fit behind the dash without interfering with air conditioning or other options. It includes chrome-plated plastic knobs and backrings that match the original factory style, black plastic pushbuttons for band selection, and a rollover analog dial that functions as the original did. The combination preserves the historic aesthetic while providing cutting-edge technology inside.
Installation. Installation is straightforward with no modifications required to the vehicle’s dash. The radio includes a specially designed wiring harness enabling easy plug-and-play connection without the need for drilling or custom fittings.
Application. Specifically engineered to fit 1969 through 1972 GTO and Tempest models, ensuring perfect compatibility with factory dash assemblies and original mounting points.
